Economy 2 Inch Dial Pressure Gauge For General Utility Applications Winters Brass Wetted Parts Steel Case Back Mount One Quarter Inch NPT Dual Scale 0 160 Psi KPa With Three Two Three Percent Accuracy

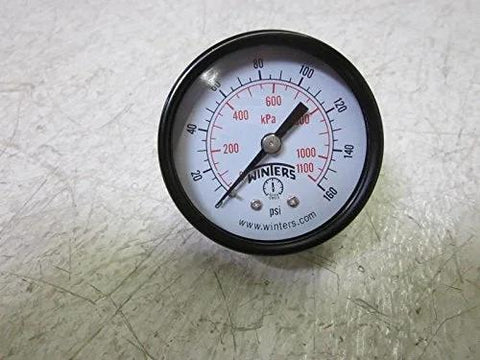

Economy 2-Inch Dial Pressure Gauge, Brass Wetted Parts
✔️ Back-mount or center-back, 1/4 NPT, dual psi/kPa, single unit, ±3% accuracy

This gauge is a budget-friendly, general purpose pressure meter designed for non-corrosive liquids and gases. It’s commonly used in plumbing, heating, air conditioning, pneumatic and hydraulic systems, as well as water tanks and air compressors. The rugged steel case and brass wetted parts provide reliable service in everyday utility applications.

✅ Brass wetted parts for measuring non-corrosive liquids and gases
✅ Dual scale: psi/kPa and Hg vacuum/kPa
✅ Back or center-back mounting with 1/8" or 1/4" NPT options
✅ IP52 steel case for dust and splash protection
✅ Dial sizes: 1.5" (40 mm), 2" (50 mm), 2.5" (63 mm), 4" (100 mm)
✅ Polycarbonate lens for 1.5", 2", 2.5" and glass lens for 4" diameter
✅ ASME B40.100 Grade B accuracy, ±3% across the range
✅ Bourdon tube: phosphor bronze; movement: brass; welded joints: silver alloy
✅ Operating temp: -40 to 150°F (-40 to 65°C); max work pressure 75% FS
✅ Over-pressure limit: 25% of full scale value

💡 What is a pressure gauge used for in HVAC and plumbing? This handy device helps monitor and control pressure in systems. - measuring system pressure in HVAC, plumbing, pneumatic, and hydraulic circuits - dual-scale reads psi/kPa and Hg vacuum/kPa - brass wetted parts resist corrosion with non-corrosive fluids - helps prevent overpressure and equipment damage in real-world use
