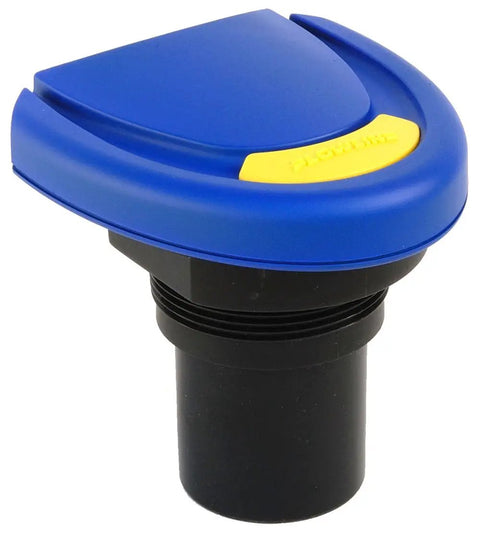

EchoSonic II Ultrasonic Level Transmitter With 18 Foot Cable And Fob, 2 Inch NPT Connection, PVDF Transducer, DSP Auto Adaptive Filters For No-Hassle Plug And Play, WebCal USB Config Software For Quick Setup, Narrow Beam Width For Tight Spaces
✔️ single unit, 2 in NPT, PVDF transducer, 32.8 ft range, WebCal
EchoSonic II is a compact, non-contact ultrasonic level transmitter designed for bulk storage tanks, sumps, and process vessels. Its PVDF transducer and 6P enclosure resist corrosive liquids, making it ideal for chemical and ultrapure fluids.
✅ Measurement range: 8 in to 18 ft (0.20 m to 5.49 m)
✅ Output: 4-20 mA two-wire current loop
✅ Beam width: 2 in or 3 in for tight spaces
✅ Enclosure: Type 6P, polycarbonate, submersible, corrosion‑resistant
✅ Transducer: PVDF; Cable: 4-conductor, shielded, polyurethane jacket
✅ Process connection: 2 in NPT with Viton gasket
✅ Temperature range: process -4 to 140 F (-20 to 60 C); ambient -31 to 140 F
✅ Power: 24 VDC loop, 0.5 W, 500 ohm loop resistance
✅ Compliance: CE, RoHS; Approvals: cFMus
💡 What is an ultrasonic level transmitter used for in industrial settings? This handy device measures liquid levels without contact and outputs a 4-20 mA signal for process control.
- Non-contact measurement for bulk tanks, sumps, and process vessels - Handy 4-20 mA output for PLC/SCADA integration - DSP auto adaptive filters improve signal clarity - WebCal USB config simplifies setup and commissioning
