Nachi

E5030X NNTS1 Nachi Sheave Bearing 2 Rows Full Complement Bearings

$3,124.99
SKU: Kit13123
UPC: 00193019093573
Item: E5030XNNTS1 Nachi Sheave Bearing
Type: Double Row Full Complement Cylindrical Roller Sheave Bearing
Dimensions: 150mm x 225mm x 100mm/Metric
ID (inner diameter)/Bore: 150mm
OD (outer diameter): 225mm
E5030XNNTS1 Nachi Sheave Bearing
Double Row Full Complement Cylindrical Roller Bearing
Made in Japan


E5030XNNTS1 Nachi Sheave Bearing, E5030XNNTS1 Nachi is a double row full Complement cylindrical roller bearing.

  • Item: E5030XNNTS1 Nachi Sheave Bearing
  • Type: Double Row Full Complement Cylindrical Roller Sheave Bearing
  • Dimensions: 150mm x 225mm x 100mm/Metric
  • ID (inner diameter)/Bore: 150mm
  • OD (outer diameter): 225mm
  • Width/Height/thickness: 100mm
  • Size: 150 x 225 x 100 mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 620,000 N
  • Static load rating Cor: 1,210,000 N
  • Limiting Speed:
    • Grease Lubrication: 650 RPM
  • Operating temperature: Suitable for -30 to +120 Celsius
  • Application: Highly suitable in rope sheave
  • Made in Japan

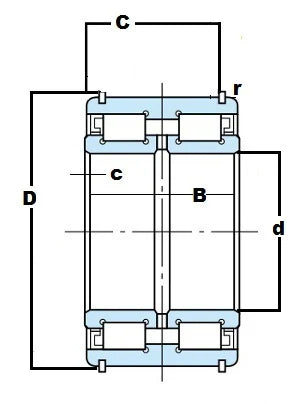

Dimensions (mm)
d D B C r(min) c
150 225 100 99 1 3.5
