Nachi

E5019NR Nachi Japan Sheave Bearing Double Row Full Complement Bearings

No reviews
$1,291.99
SKU: Kit13499
UPC: 00193019096109
Item: E5019NR Nachi Sheave Bearing
Type: Double Row Full Complement Cylindrical Roller Sheave Bearing
Dimensions: 95mm x 145mm x 67mm/Metric
ID (inner diameter)/Bore: 95mm
OD (outer diameter): 145mm
E5019NR Nachi Sheave Bearing
Double Row Full Complement Cylindrical Roller Bearing
Made in Japan



E5019NR Nachi Sheave Bearing, E5019NR Nachi is a double row full Complement cylindrical roller bearing, E5019NR Nachi has hightest dynamic and static load ratings, bearing has Superior sealing capability and it has unique design rubber contact seal prevents dust & water invasion, E5019NR Nachi lubricates with a lithium soap-based grease containing an EP additive, E5019NR Nachi lubricates through lubrication hole & grooves only in inner ring.

  • Item: E5019NR Nachi Sheave Bearing
  • Type: Double Row Full Complement Cylindrical Roller Sheave Bearing
  • Dimensions: 95mm x 145mm x 67mm/Metric
  • ID (inner diameter)/Bore: 95mm
  • OD (outer diameter): 145mm
  • Width/Height/thickness: 67mm
  • Size: 95 x 145 x 67 mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 310,000 N
  • Static load rating Cor: 560,000 N
  • Limiting Speed:
    • Grease Lubrication: 1050 RPM
  • Operating temperature: Suitable for -30 to +120 Celsius
  • Application: Highly suitable in rope sheave
  • Made in Japan

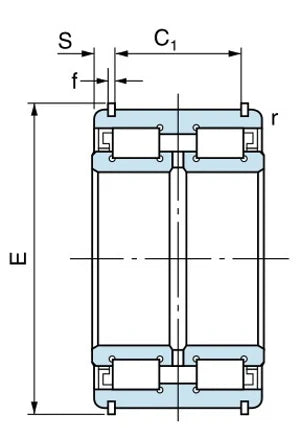

Dimensions (mm)
d D B C r(min) c E C1 S F
95 145 67 66 0.6 25 156.8 54 6 2.5
