Nachi

E5008X NNTS1 Nachi Sheave Bearing 2 Rows Full Complement Cylindrical

No reviews
$394.99
SKU: Kit13126
UPC: 00193019093603
Item: E5008XNNTS1 Nachi Sheave Bearing
Type: Double Row Full Complement Cylindrical Roller Sheave Bearing
Dimensions: 40mm x 68mm x 38mm/Metric
ID (inner diameter)/Bore: 40mm
OD (outer diameter): 68mm
E5008XNNTS1 Nachi Sheave Bearing
Double Row Full Complement Cylindrical Roller Bearing
Made in Japan


E5008XNNTS1 Nachi Sheave Bearing, E5008XNNTS1 Nachi is a double row full Complement cylindrical roller bearing, E5008XNNTS1 Nachi has hightest dynamic and static load ratings, bearing has Superior sealing capability and it has unique design rubber contact seal prevents dust & water invasion, E5008XNNTS1 Nachi lubricates with a lithium soap-based grease containing an EP additive, E5008XNNTS1 Nachi lubricates through lubrication hole & grooves only in inner ring.

  • Item: E5008XNNTS1 Nachi Sheave Bearing
  • Type: Double Row Full Complement Cylindrical Roller Sheave Bearing
  • Dimensions: 40mm x 68mm x 38mm/Metric
  • ID (inner diameter)/Bore: 40mm
  • OD (outer diameter): 68mm
  • Width/Height/thickness: 38mm
  • Size: 40 x 68 x 38 mm
  • Snap Ring: WRE 68 (not included)
  • Quantity: One Bearing
  • Dynamic load rating Cr: 79,000 N
  • Static load rating Cor: 125,000 N
  • Limiting Speed:
    • Grease Lubrication: 2,500 RPM
  • Operating temperature: Suitable for -30 to +120 Celsius
  • Application: Highly suitable in rope sheave
  • E5008XNNTS1 = SL04 5008 PP
  • E5008XNNTS1 = NNF5008 ADA-2LSV
  • E5008XNNTS1 = NAS5008UUNR
  • E5008XNNTS1 = NNF5008EDA.2LS.V
  • Made in Japan

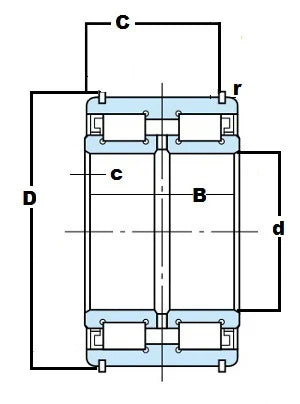

Dimensions (mm)
d D B C r(min) c
40 68 38 37 0.6 1.5
