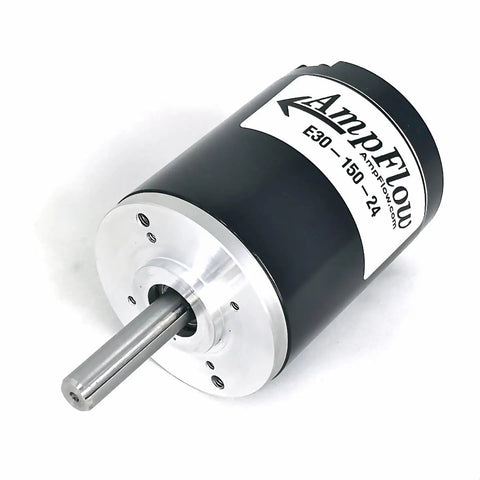

E30-150 Brushed Electric Motor For DIY Projects, 12V 24V Or 36V DC, 5600 RPM No-Load At 24V, 740W Peak Power, 5.0 Nm Stall Torque, 76% Peak Efficiency At 24V (17A, 4900 RPM), Compact 3.1 Inch Diameter By 4 Inch Length

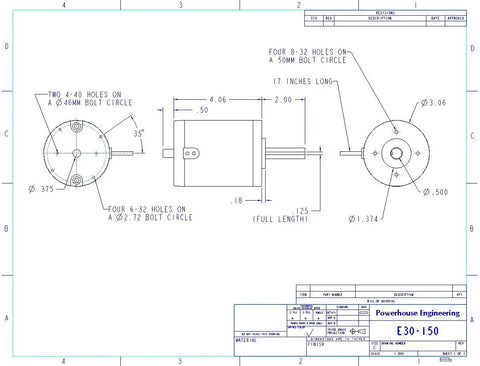

✔️ 3.1 in dia (78 mm) x 4.0 in L (102 mm); single unit at 24V no-load 5600 RPM
Compact, high-capacity DC motor designed for DIY robotics, automation prototypes, and hobby tools. It delivers solid torque and reliable performance in a compact package.
✅ Voltage range: 12-36 VDC

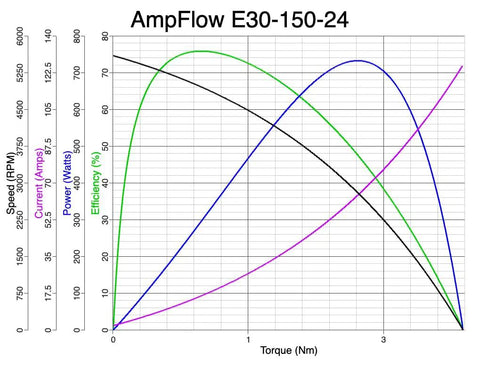

✅ No-load speed: 5600 RPM at 24V; 740W peak; 76% peak efficiency at 24V (17A, 4900 RPM)
✅ Peak torque: 5.0 Nm (710 oz-in) stall torque
✅ Shaft and bearings: 1/2 in shaft (12.7 mm) diameter, 2 in long (50.8 mm); rear encoder shaft 3/8 in (9.5 mm)
✅ Body: two aluminum castings, powder-coated black finish; weight 3.6 lb (1.63 kg)
✅ Leads: 18 in long, 12 AWG; optional gearhead available
💡 What is a compact DC motor used for in DIY robotics and automation projects? Handy overview of uses and performance. - drive and actuation in small robots and hobby automation - 12-36 V DC compatibility for scalable power - consider peak power and stall torque for load planning
✝️
