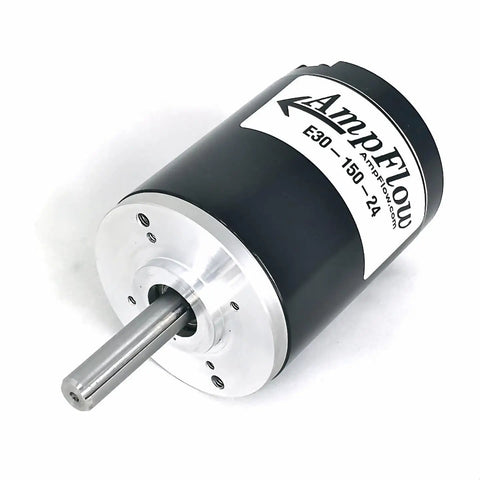

E30 150 24 Brushed Electric Motor For 12V To 36V DC, 5600 RPM, Ultra Compact Three Point One Inch Diameter By Four Inch Length, 740W Peak Power, 5.0 Nm Stall Torque, High Efficiency At 24V, Ready For Easy Install
This compact brushed DC motor is designed for 12-36V systems and is commonly used in robotics, motion control, automation projects, and small personal transport devices. It fits tight spaces while delivering solid torque and efficient performance.
✅ No-load rpm: 5600 at 24V
✅ Peak power: 740 W (1.0 hp) at 24V
✅ Max stall torque: 5.0 Nm (710 oz-in)
✅ Efficiency: 76% at 24V, 17 A, 4900 RPM
✅ Power at peak efficiency: 309 W (0.41 hp) at 17 A
✅ Body: two aluminum castings with black powder coat
✅ Dimensions: 3.1 in (78 mm) diameter x 4.0 in (102 mm) length; shaft 0.5 in (12.7 mm) dia x 2.0 in (50.8 mm) long
✅ Weight: 3.6 lb (1.63 kg)
✅ Gearhead option available
💡 What is a small 12-36V brushed motor used for in hobby robotics and automation?
These handy motors are great for compact robotics and quick, easy setups where space is tight.
- handy for compact robotics and automation projects- works on 12-36V DC with adjustable speed and torque
- reliable torque in a small package for DIY drives
- compatible with optional gearhead to tailor performance
✝️
