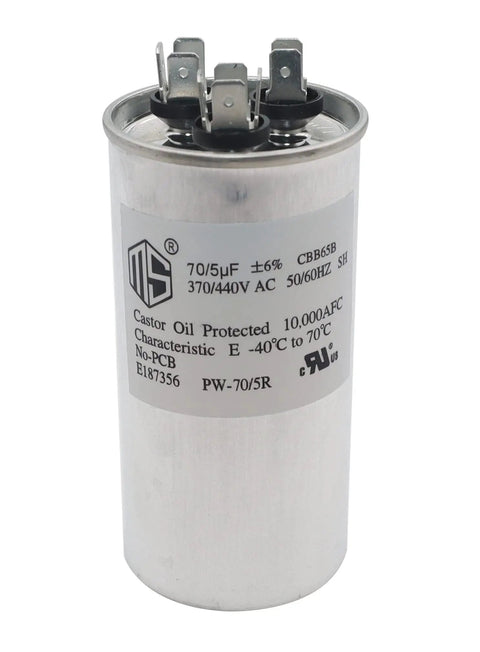

Dual Run Capacitor 70 Plus 5 MFD 370V 440V CBB65B For Condenser And Air Conditioner AC Unit Motor Run And Fan Start Capacitor High Quality 70 And 5uF Tolerance 6 Percent Round

Dual Run Capacitor 70+5µF for AC condensers and fans
✔️ 70+5µF, 370/440V, CBB65B, 3-terminal C/H/F, single pack

This dual run capacitor is a compact, all-in-one unit used to run both the compressor and the condenser fan in outdoor AC units. It's commonly installed in central air conditioners, heat pumps, and other HVAC condensers.

✅ Capacitance 70+5 µF ±6% at 370/440V AC
✅ Voltage rating 370/440V AC

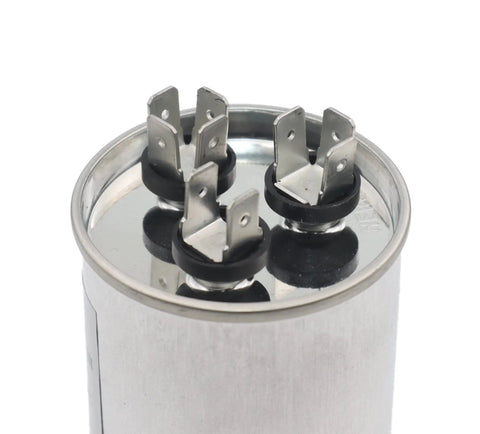

✅ Three terminals C, H, F for common, Herm, and fan wiring
✅ Dimensions: Ø50 mm x 125 mm (1.97 in x 4.93 in)
✅ Replacements include: P291-7053RS, P291-7054R, 27L633BZ3, 27L633, TRCD705, C3705R, PRCFD705A, TRCFD705

Dimension	Value
Diameter	50 mm / 1.97 in
Height	125 mm / 4.93 in

💡 What is a dual run capacitor used for in HVAC systems?

This handy component powers both the compressor and the condenser fan in outdoor units.

• Capacitance 70+5 µF with tight tolerance for reliable starting and running
• Voltage rating 370/440V AC to match common outdoor condensers
• Three-terminal design labeled C, H, F for straightforward wiring
• Durable metal shell with metallized polypropylene dielectric for outdoor use
