Dual PWM To 0 To 5V And 0 To 10V DAC Converter Module For Smart Home Automation Frequency To Voltage 50Hz To 50KHz Low Current Draw 2 Pack Two Channel Outputs For Flexible Wiring

Two-Channel PWM to 0-5V/0-10V DAC Converter for Smart Home

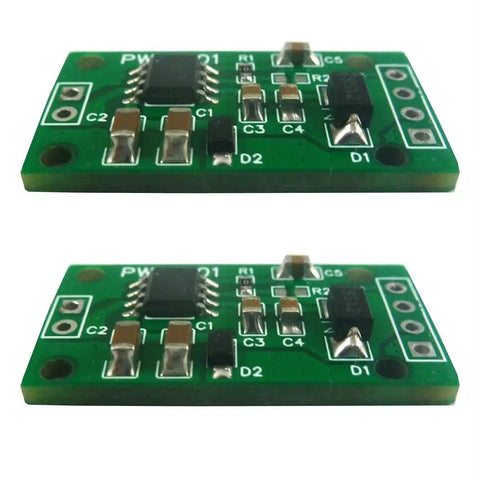

✔️ 2-pack, 2-channel PWM to 0-5V/0-10V DAC, 50Hz-50kHz

This compact DAC module converts PWM signals into stable 0-5V or 0-10V analog outputs, ideal for smart home control tasks like LED dimming, motor speed regulation, or PLC input/output interfaces. It's designed for microcontrollers, single-board computers, and industrial controllers where precise analog voltage is needed.

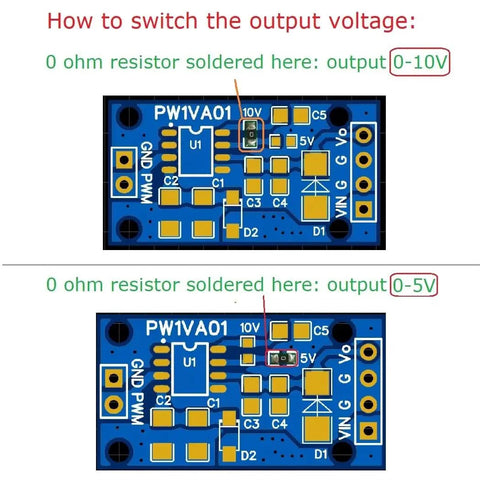

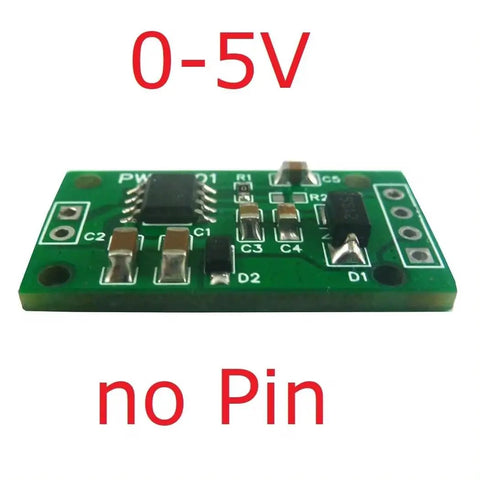

✅ Output range per channel: 0-5V or 0-10V (two channels)
✅ PWM input range: 0-100% duty cycle
✅ PWM frequency: 50 Hz to 50 kHz

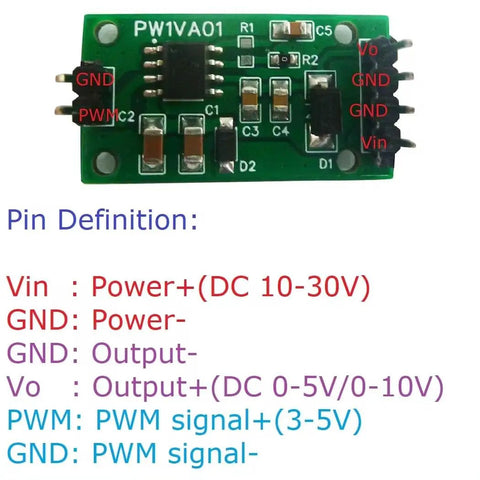

✅ Working voltage: DC 10-25V for 0-5V output; DC 11-30V for 0-10V output
✅ Maximum drive current: 15 mA at 12V; 20 mA at 24V
✅ Size: 28 x 15 x 6 mm; weight about 2.1 g

💡 What is a PWM to DAC converter used for in home automation?

It translates a PWM control signal into a precise analog voltage for devices that expect 0-5V or 0-10V control levels.

• Converts PWM duty cycle to stable 0-5V or 0-10V outputs
• Ideal for LED dimming, motor control, and sensor interfacing

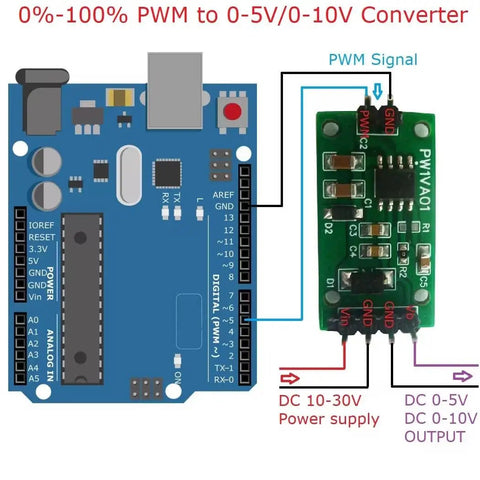

• Works with microcontrollers and PLCs for automation projects
• Wide PWM frequency range supports flexible wiring
