Dual Orientation 5C Collet Fixture Holder 225-202B For Milling, Grinding, And Drilling, Horizontal Or Vertical Setup, Manual Collet Chuck Workholding For Precision Clamping

Dual-Orientation 5C Collet Fixture Holder for Milling

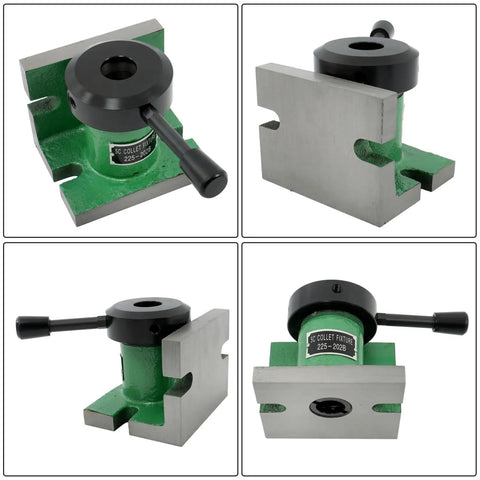

✔️ Horizontal or vertical operation on any angle plate

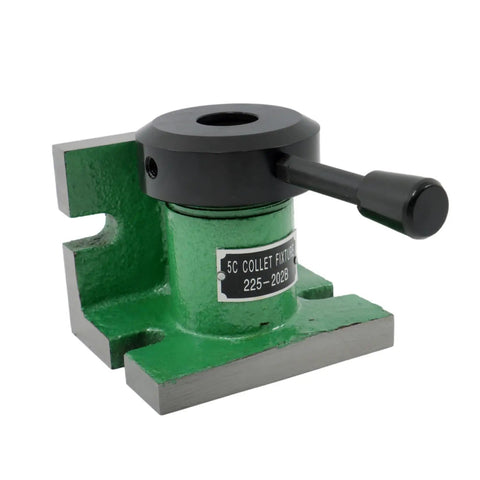

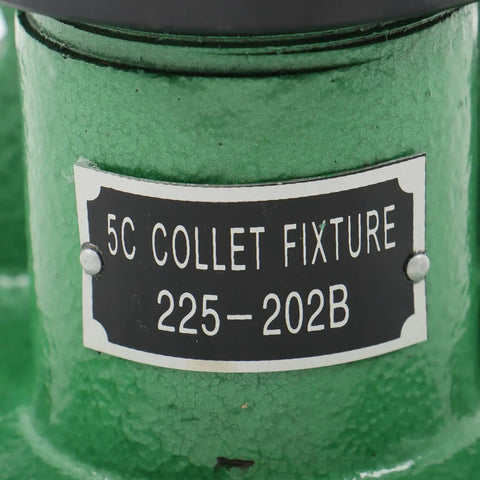

This 5C Collet Fixture Holder (model 225-202B) is a manual workholding tool designed for milling, grinding, drilling, tapping, reaming, and slotting. It mounts on any angle plate to support horizontal or vertical setups in a benchtop or machine shop.

✅ Dual orientation operation for horizontal or vertical use

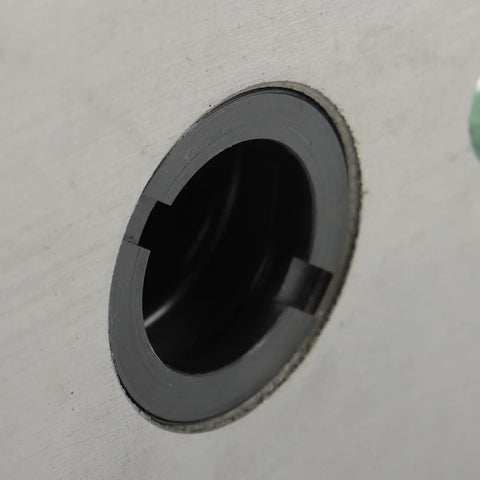

✅ Holds standard 5C collets for precise clamping up to 1-1/8" diameter

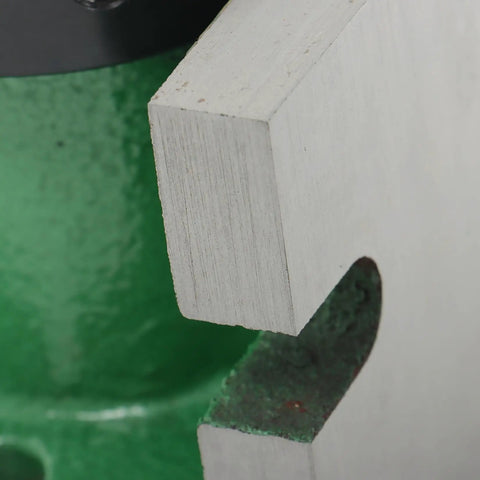

✅ Compact, sturdy base with approx 4-1/4" x 5" footprint and 4-1/4" height

💡 What is a 5C collet fixture holder used for in milling and drilling operations?

This handy fixture helps secure standard 5C collets on an angle plate for precise, repeatable workholding in both horizontal and vertical orientations.

• Dual orientation mounting enables horizontal or vertical operation

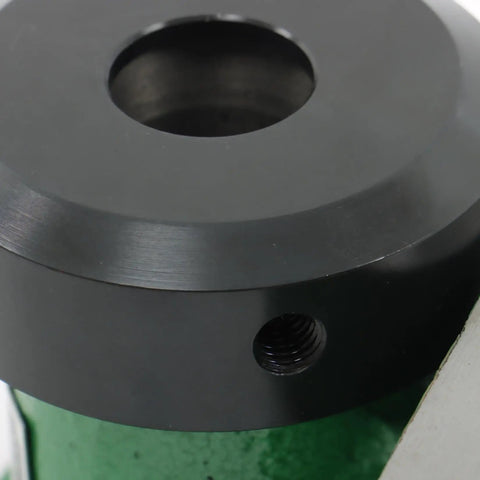

• Top-clamp design delivers firm, concentric grip for accurate cuts
• Compatible with standard 5C collets (sold separately) for flexible use

✝️
