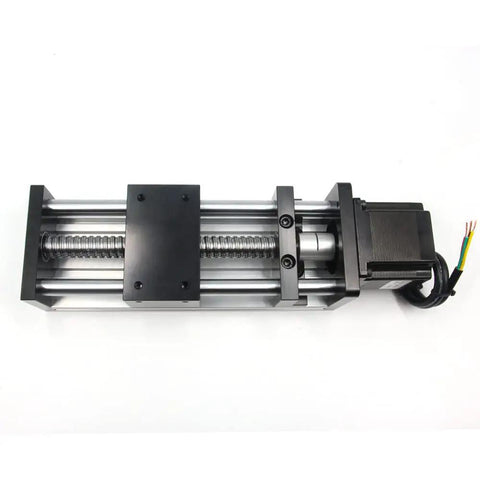

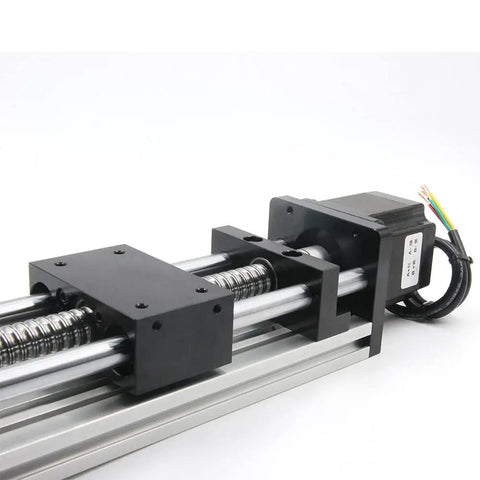

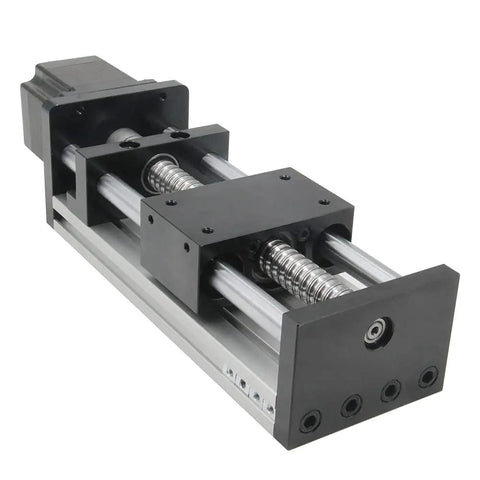

Dual Optical Axis Ballscrew SFU1605 100mm Travel With NEMA23 Stepper Motor For DIY CNC Routers And 3D Printers Beefy High Precision Linear Stage Actuators 30kg Load Capacity Stable Performance
✔️ 100mm travel, 5mm lead, 30kg load, SFU1605, NEMA23
The Dual Optical Axis SFU1605 actuator with NEMA23 motor delivers precise linear motion for DIY CNC routers and 3D printers. It combines a dual optical axis guide with a robust ball screw for smooth, repeatable performance in small to mid-size projects.
✅ Lead screw SFU1605, 16 mm dia, 5 mm pitch (1 rev ≈ 5 mm / 0.197 in)
✅ Travel: 100 mm (3.9 in); total length 276 mm (10.8 in)
✅ Load capacity: 30 kg horizontal, 15 kg vertical; weight ~2317 g
✅ Motor: NEMA23, 1.2 N·m holding torque, 3 A, 0.8 Ω, 2.4 mH
✅ Repeatability ±0.03 mm; dual optical axis guide; SFU1605 ballscrew

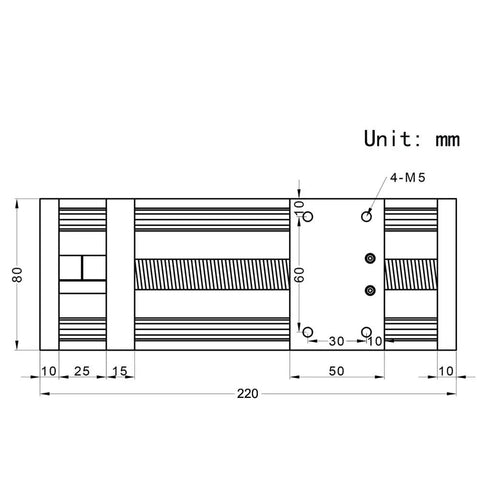

✅ 4x M5 mounting holes; motor flange 57 mm; length 56 mm; mounting hardware included
💡 What is a dual optical axis ballscrew actuator used for in DIY CNC routers and 3D printers? This handy motion system provides precise control for compact machines.
- handy for precise X-Y axis motion in DIY CNC routers and 3D printers - improves repeatability and rigidity over simple lead screws in small builds - pairs with NEMA23 motors and SFU1605 screws for easy upgrades - helps achieve consistent part dimensions in hobby manufacturing ✝️
