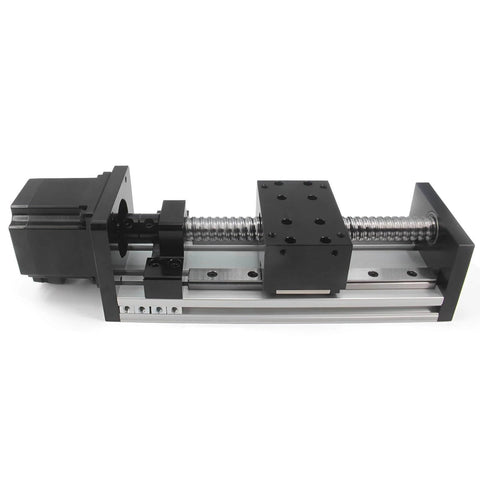

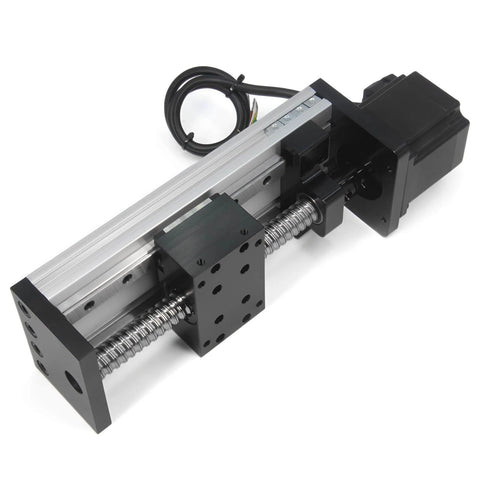

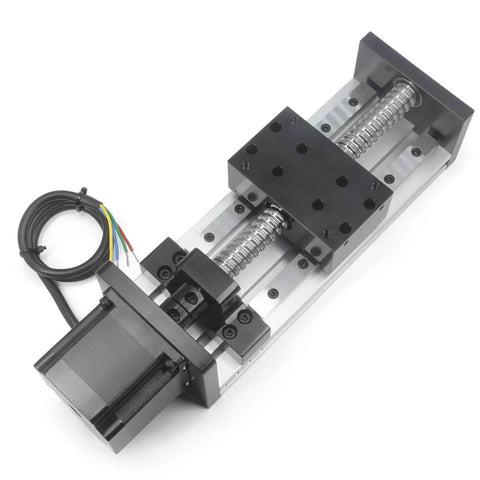

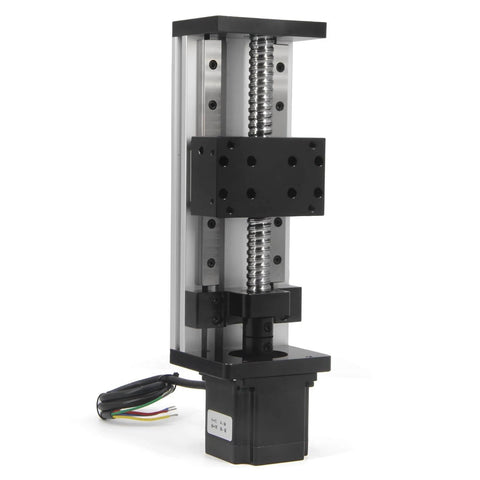

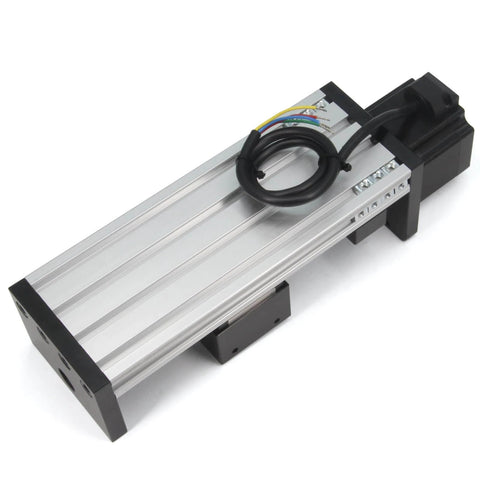

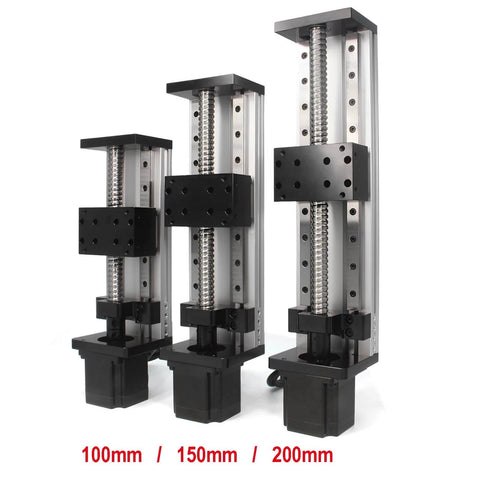

Dual Linear Rail Guide Ballscrew SFU1605 with Square Linear Rails with NEMA23 Stepper Motor, 100mm Effective Stroke Length for CNC Router Parts X Y Z Linear Stage Actuator (100mm Stroke)

Dual Linear Rail Guide Ballscrew SFU1605 with Square Rails and NEMA23 Motor - 100mm Stroke Dual Linear Stage for CNC Router X Y Z (Single Unit Pack)

✔️ 100mm Stroke Dual Linear Stage with SFU1605 Ballscrew, Square Rails, and NEMA23 Motor

This dual linear stage uses SFU1605 ballscrews and square rails to provide precise, smooth motion for CNC routers, inspection equipment, optical labs, and precision measurement tasks. It is a single unit with a NEMA23 stepper motor and 100 mm effective travel, designed for reliable X, Y and Z axis positioning.

✅ Package includes 1 piece dual linear stage actuator with NEMA23 motor
✅ Stroke: 100 mm (3.9 inch) effective travel

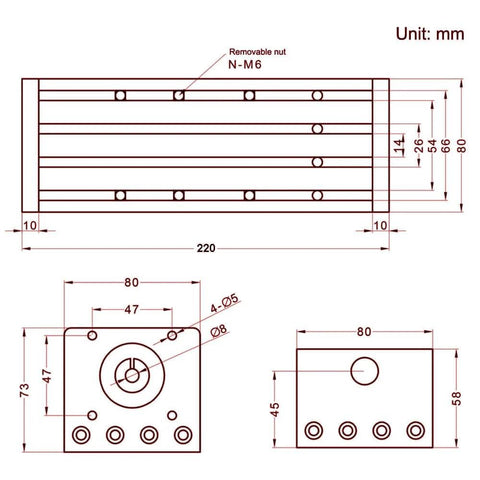

✅ Total length: 276 mm (10.9 inch)
✅ Ballscrew SFU1605: 16 mm diameter, 5 mm pitch; lead 5 mm per turn
✅ Load capacity: horizontal up to 40 kg; vertical up to 15 kg
✅ Speed: 0-50 mm/s

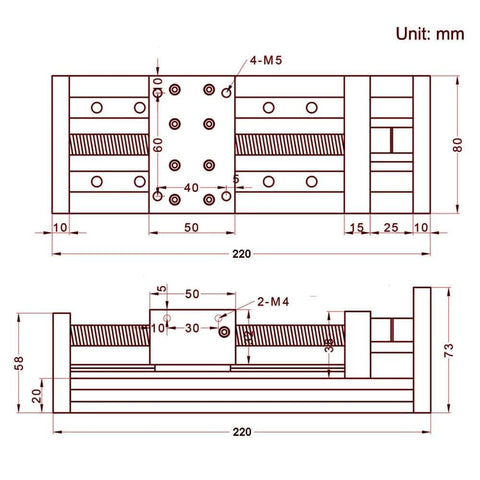

✅ Moving block has 4 x M5 threaded holes to fix workpiece
✅ Rails: square linear rails for stable, accurate movement
✅ Weight: about 2279 g
✅ Stepper motor: NEMA23, step angle 1.8°, flange 57 mm, length 56 mm
✅ Holding torque: 1.2 N·m
✅ Motor drive: DC 24 V, 3 A; resistance 0.8 ohm; inductance 2.4 mH
✅ Rotor inertia: 440 g·cm
✅ Wiring: Red A+, Green A-, Yellow B+, Blue B-
✅ Repeat positioning accuracy: ±0.03 mm
✅ Note: 1 unit per package



💡 What is a dual linear rail ball screw stage used for in CNC machines and precision positioning?

These stages provide smooth, precise linear motion and reliable load handling across many applications.

• Accurate, repeatable displacement for CNC routing, laser work, and precision assembly
• SFU1605 lead screw with 5 mm lead for predictable, controllable motion
• NEMA23 motor compatibility with common control systems for easy integration
• Square rails give stable travel and reduce unwanted play for consistent results

This handy dual stage delivers precise, repeatable motion for CNC routing, inspection, and fine displacement tasks.
