Dual Linear Rail Guide Ballscrew SFU1605 Kit With Square Rails And NEMA23 Stepper Motor 200mm Stroke For CNC Router X Y Z Linear Stage Actuator Built For Rugged CNC Use And Smooth Motion

SFU1605 Dual Linear Rail Ball Screw Stage for CNC Router
✔️ Single unit, 200mm travel, dual rails, SFU1605 screw, NEMA23 motor

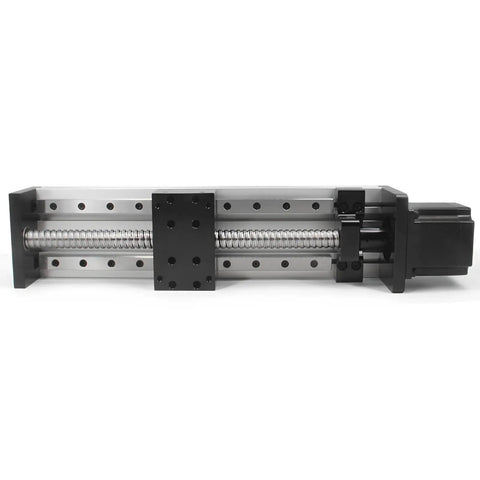

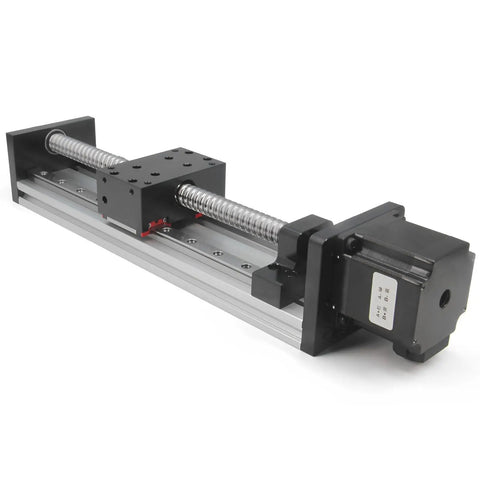

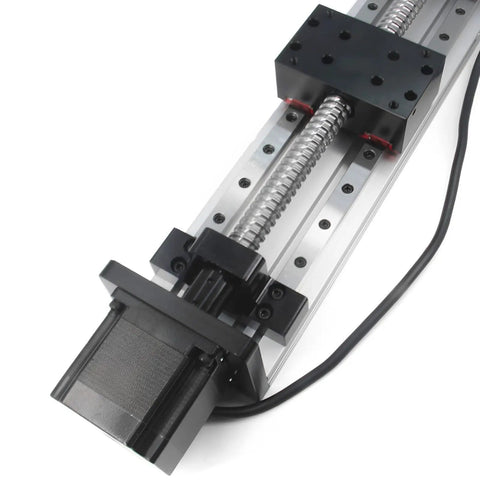

This dual linear rail guide with a SFU1605 ballscrew is a rugged motion stage designed for CNC routers, milling machines, inspection fixtures, and precision automation. It delivers smooth linear motion with a 200 mm effective travel and a 376 mm overall length, built for demanding environments.

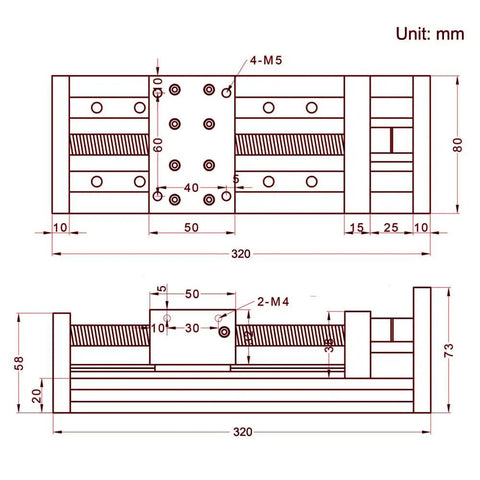

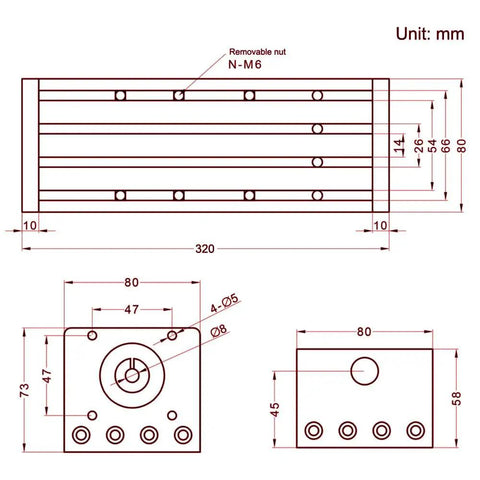

✅ Travel: 200 mm (7.87 in); total length: 376 mm (14.8 in)
✅ Ballscrew: SFU1605, Ø16 mm, 5 mm pitch, lead 5 mm
✅ Rails: square rails provide stable, rigid motion
✅ Load capacity: horizontal 40 kg; vertical 15 kg

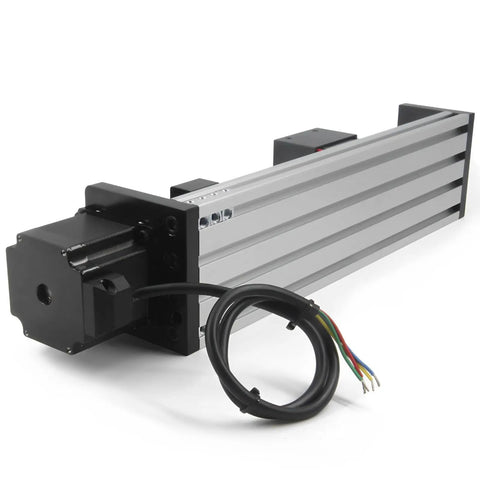

✅ Motor: NEMA23, 24 V, 3 A, holding torque 1.2 N·m
✅ Accuracy: repeatability ±0.03 mm
✅ Mounting: 4 x M5 holes on moving block for workpiece

💡 What is a handy use case for a dual linear rail and ballscrew stage?

It's handy for precise positioning in CNC routing, inspection stations, and automation setups.

- high-precision positioning for CNC routers and milling machines - repeatable motion along X, Y axes for alignment tasks - easy mounting with 4x M5 holes and standard motors
