Drone GPS Module With M10 GNSS And QMC5883 Compass Ceramic Antenna For RC Freestyle Long Range DIY Drones Replaceable Upgrade Part With Stable Electronics And Precision Positioning For Easy Plug And Play Install

GPS M10 GNSS Drone Module with Ceramic Antenna - Single Pack ✔️ M10 GNSS, 72 channels, QMC5883 compass, 5V, 10Hz output

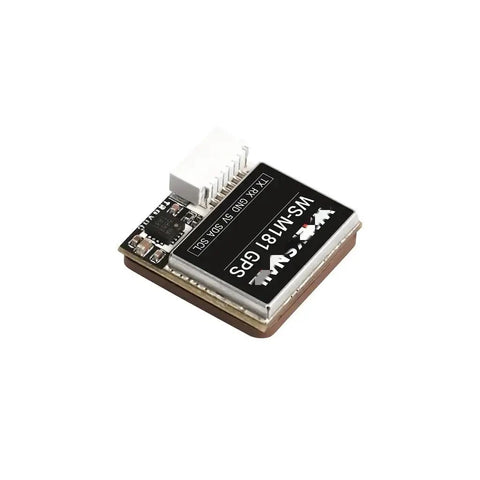

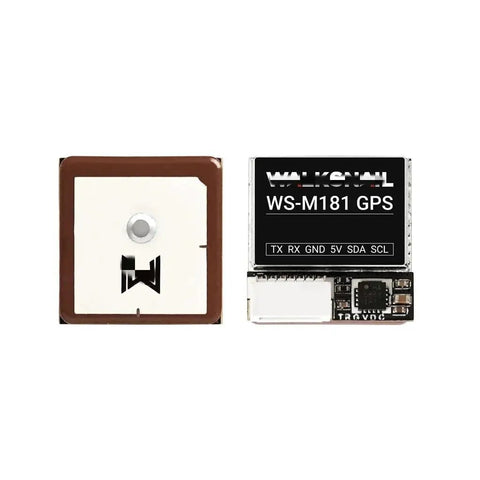

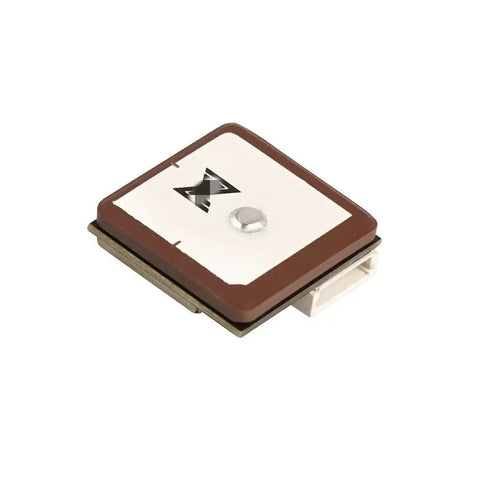

This GPS module combines the M10 GNSS chipset with a built-in QMC5883 compass and a ceramic antenna. It's designed for RC freestyle long range drones and easy plug-and-play installs.

✅ Chip: M10 GNSS with 72 search channels
✅ Satellite systems: GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1
✅ Output protocols: NMEA and UBX (dual)
✅ Baud rate: 115200 dps
✅ Power: 5V; size: 18mm x 18mm x 4.6mm; ceramic antenna
✅ Horizontal positioning accuracy: 2D ACC ~1.5m (open air)
✅ Output frequency: 1-10 Hz (default 10 Hz)
✅ Operating temp: -40°C to +85°C; storage -40°C to +105°C

💡 What is a GPS module used for in RC drones and why would you pick an M10 GNSS model? This handy module provides precise positioning and easy data for flight controllers. - multi-constellation coverage for reliable tracking - NMEA and UBX dual outputs for easy FC integration - ceramic antenna for durable reception in outdoor flights - wide operating temperature range suitable for varied conditions

✝️
