Draft Inducer Motor Kit For Furnace Replacement 318984-753 318984-752 318984-751 DIY Friendly Compatible With HC21ZE117 HC21ZE114A SM4753 LA11AA005 Bryant Payne Jakel Models
✔️ Includes motor, blower wheel, cooling wheels, adapters, warranty
This aftermarket draft inducer motor kit is designed to replace multiple OEM parts and works with a range of furnace models. It is a solid DIY option for Bryant, Carrier, Payne, Jakel, and other compatible units, delivering quiet, efficient exhaust movement for safe venting.

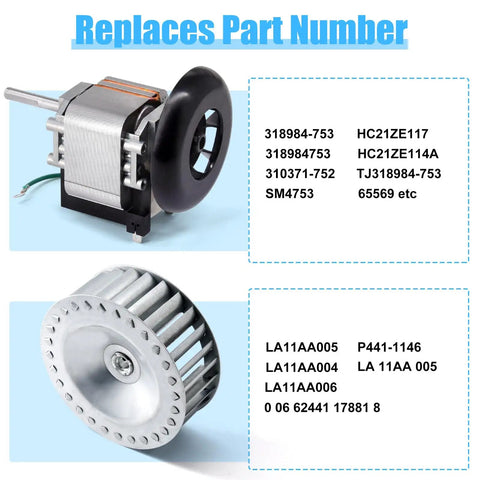

✅ Replaces multiple OEM part numbers including 318984-753, HC21ZE117, HC21ZE114A, 318984-752, 318984-751, SM4753, LA11AA005, LA11AA004

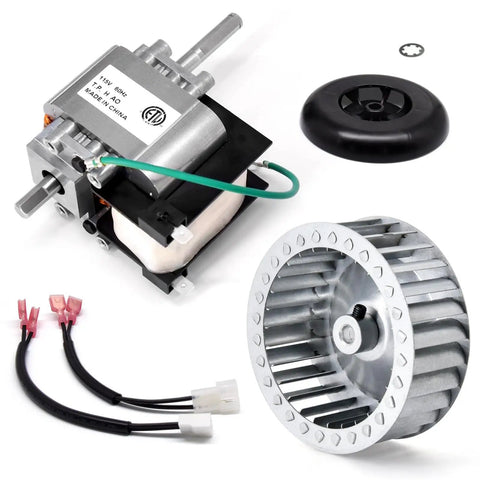

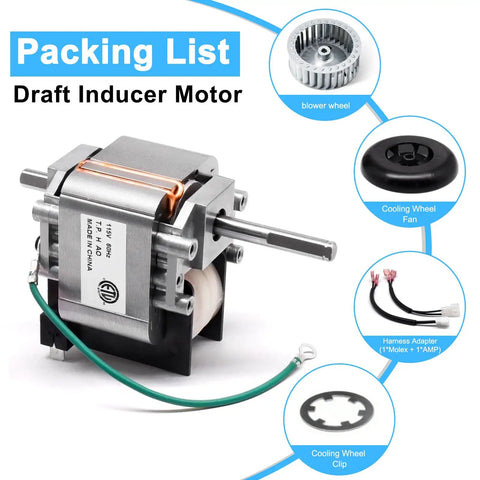

✅ Kit includes: Draft Inducer Motor, Blower Wheel, Cooling Wheel, Cooling Wheel Clip, 2 Wire Harness Adapters
✅ Technical specs: 115V, 60Hz, 1.5A, 3000 RPM, Ball bearings, Counterclockwise rotation, Insulation Class B
✅ Quality & warranty: ETL approved, 1-year warranty, quiet operation, and cost-saving over OEM options
| Dimension | Inch | Millimeters |
|---|---|---|
| Cooling Wheel Shaft Length | 3/4" | 19.05 mm |
| Cooling Wheel Shaft Diameter | 5/16" | 7.94 mm |
| Blower Wheel Shaft Length | 1 7/8" | 47.63 mm |
| Blower Wheel Shaft Diameter | 5/16" | 7.94 mm |

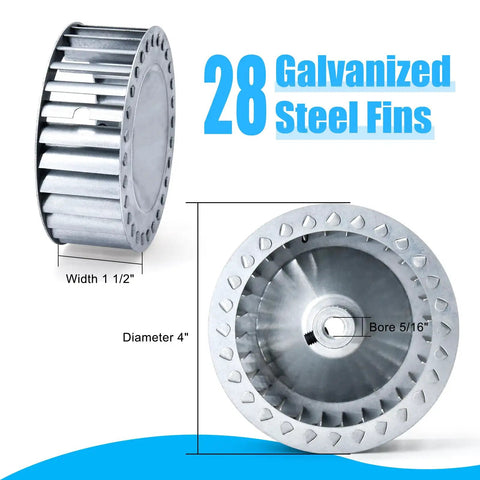

| Blower Wheel Diameter | 4" | 101.6 mm |
| Blower Wheel Width | 1 1/2" | 38.10 mm |
💡 What is a draft inducer motor used for in home furnaces?
It's a handy component that pushes exhaust gases through the vent and helps ensure safe, proper furnace operation.
- Compatible with Carrier, Bryant, Payne, Jakel models and OEM numbers

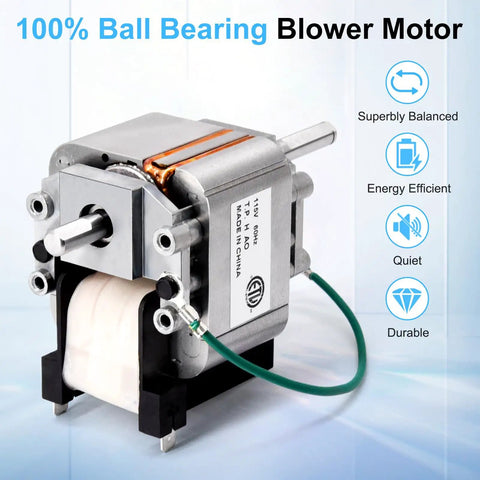

- Ball bearing design for quiet operation and longevity
- Includes motor, blower wheel, cooling wheels, and adapters for easy DIY install
- ETL listed with a 1-year warranty
