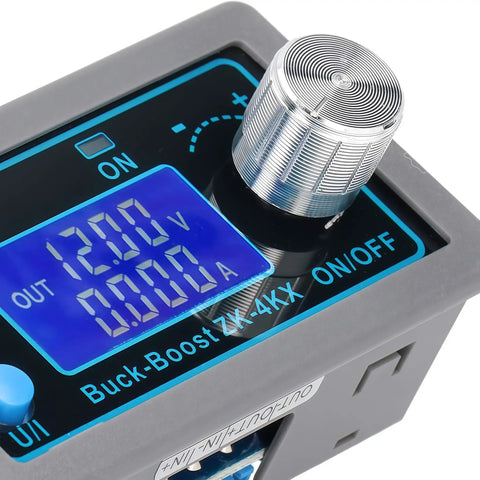

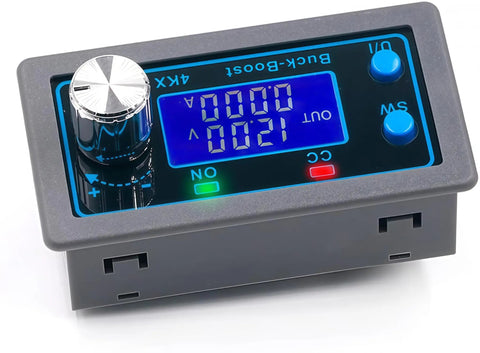

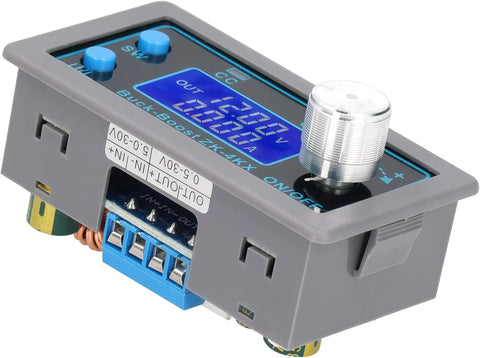

Dope Buck Boost Converter With CC CV Regulation 0.5 To 30 Volts Output And 5 To 30 Volts Input 3 To 4 Amps Max 35 Watts Lab Power Supply Module For DIY Electronics And Bench Use
✔️ 0.5-30V adjustable output, 3-4A max, up to 50W with heat sink
The DC-DC Buck-Boost Converter is a compact power module that can both step up and step down input voltage. It delivers a stable CC/CV output suitable for lab benches, LED drivers, solar charging projects, and DIY power supplies. Built with a thick heatsink and a robust protection system, it ensures safe operation across a wide input range. Grey color and durable construction finish the device.
✅ Input voltage range: DC 5-30V
✅ Output voltage range: DC 0.5-30V, adjustable
✅ Output current: 3A continuous; 4A with enhanced heat dissipation
✅ Max output power: 35W; up to 50W with better cooling

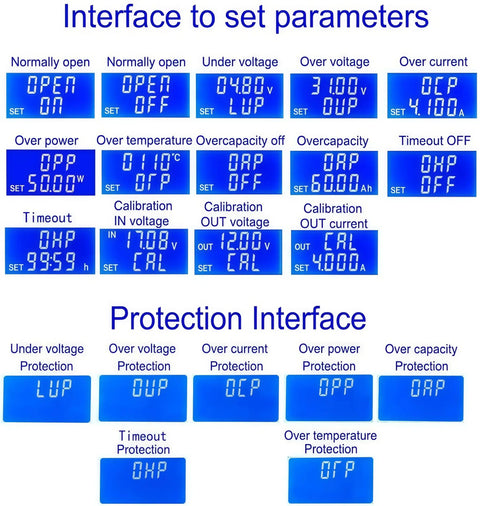

✅ Protection features: anti-reverse input, anti-backflow output; adjustable over-current threshold

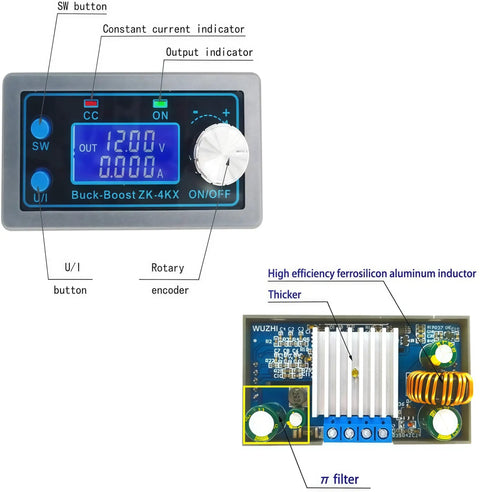

✅ Features: π-filter, thick heatsink, ON/OFF by default
💡 What is a DC buck-boost converter used for in lab power supplies?
A handy way to manage voltage from variable sources while keeping a stable output.
- handy for powering gear from batteries with changing voltage - supports CC/CV control for LEDs and charging circuits - great for DIY solar chargers and portable power setups - protects connected gear with built-in protections
