DIY Oscilloscope Kit With Two Point Four Inch TFT Display 1MSPS Digital Scope For Hands On Electronics Learning Budget Friendly Pocket Sized And Portable Includes Probes And SMD Parts ARM Cortex M3 Based

ARM Cortex-M3 Oscilloscope Kit with 2.4 inch TFT display
✔️ Single kit includes probes and SMD parts for hands-on learning

This DIY oscilloscope kit is a compact, ARM Cortex-M3 powered measurement tool designed for electronics classrooms, labs, and hobby benches. Use it to observe waveforms on a bright 2.4-inch color TFT display and learn core oscilloscope concepts through hands-on assembly and experiments.

✅ Maximum Real-time Sampling Rate: 1 MSPS; 12-bit ADC accuracy
✅ Analog bandwidth: 0-200 kHz; Input impedance 1 MΩ
✅ Vertical sensitivity: 10 mV/Div to 5 V/Div (1-2-5 steps); 50 Vpp (1:1) or 400 Vpp (10:1)
✅ Horizontal time base: 10 μs/Div to 50 s/Div (1-2-5 steps)

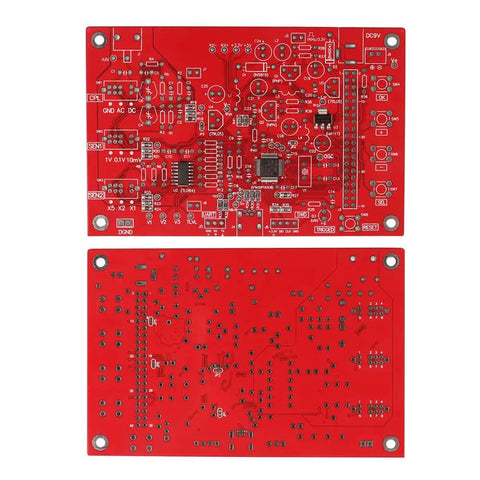

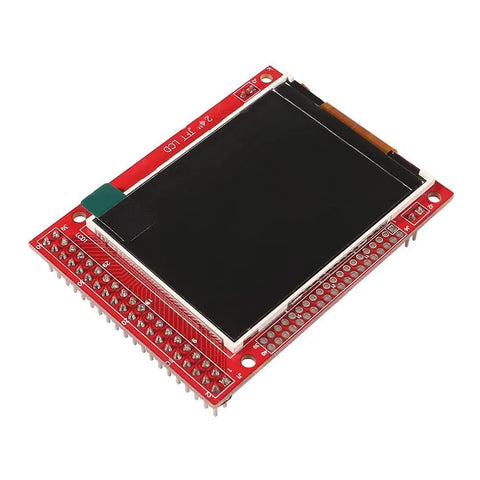

✅ Display and dimensions: 2.4 inch TFT; PCB 117 x 76 mm (4.6 x 3 in); Screen 52 x 40 mm (2 x 1.57 in)

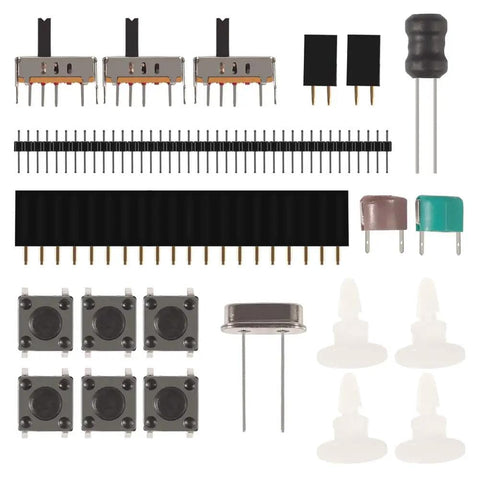

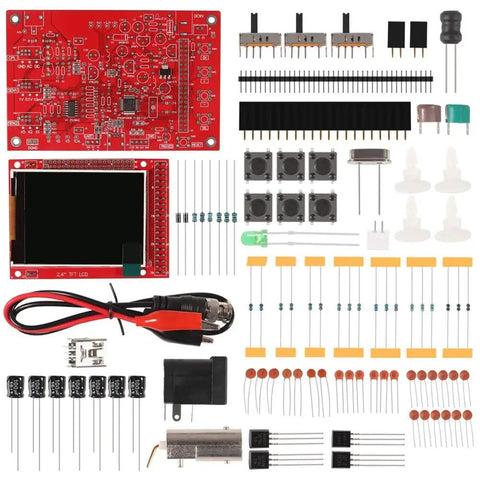

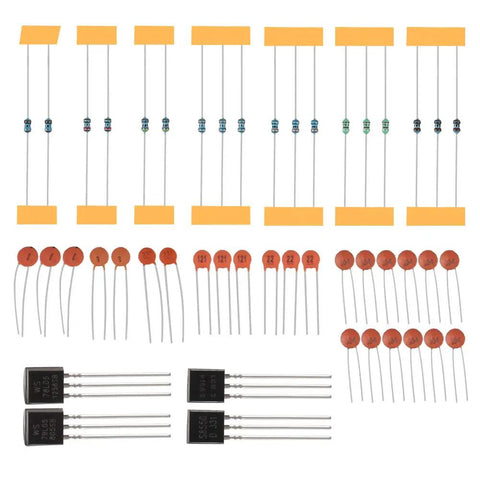

✅ Power and contents: DC 9V supply; Includes probes and SMD parts; assembly required

💡 What is an oscilloscope kit used for in electronics learning?

A handy, hands-on tool for seeing real-time waveforms and learning timing concepts.
- Hand-on waveform observation for audio and power electronics
- Teaching timing, triggering, and sampling basics
- Probes and SMD parts included for practical practice
