DIN Rail Solid State Relay With Built In Heatsink For Easy Box Install, DC To AC Output 24 To 480V, 3 To 32V DC Input, 40A SSR, Compact 0.964 Inch Width With Mounting Rail Clips, No External Heatsink Needed

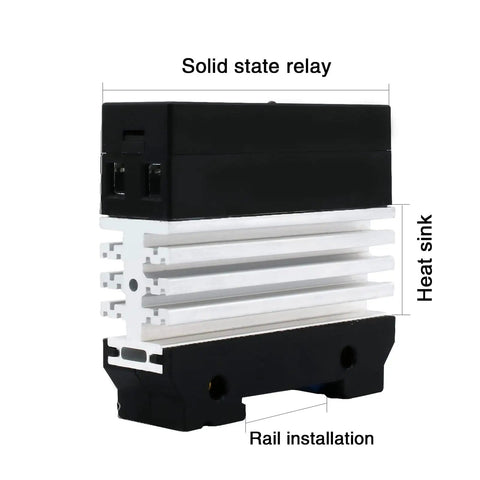

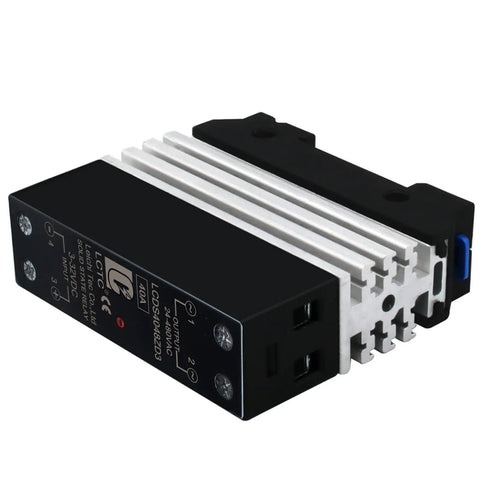

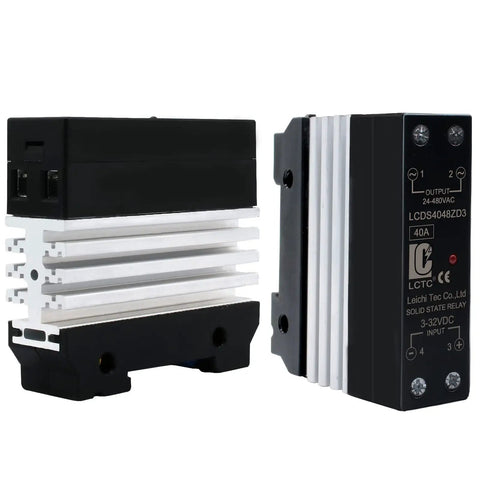

Compact DIN Rail SSR with built-in heatsink, single unit
✔️ 40A DC-AC SSR with built-in heatsink, 24-480V output

This compact DIN rail solid state relay is designed for quick, space-saving control panel installs. It switches DC input signals to AC loads with high efficiency, and its built-in heatsink eliminates the need for external cooling in distribution boxes.

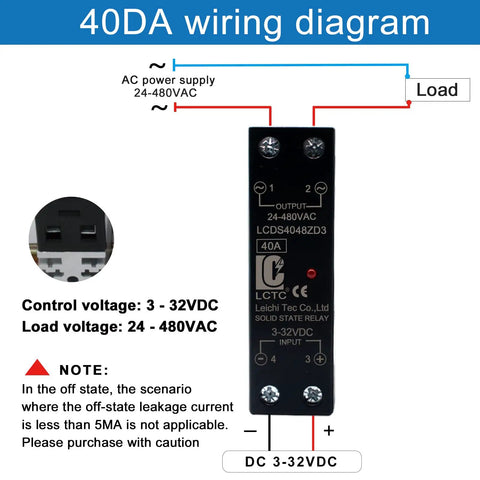

✅ 40A continuous switching from 3-32V DC input to 24-480V AC output
✅ Built-in heatsink eliminates need for external cooling

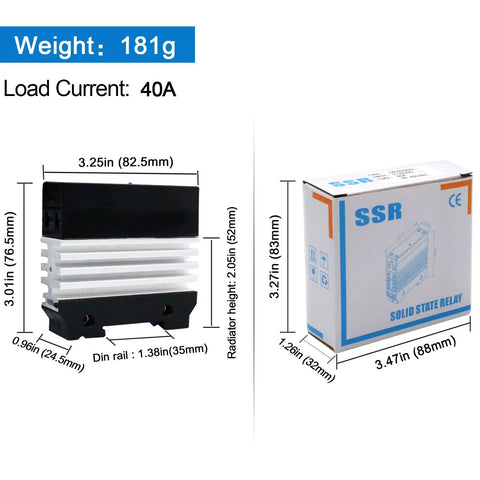

✅ Narrow 0.964 in (2.45 cm) width fits tight DIN rail spaces

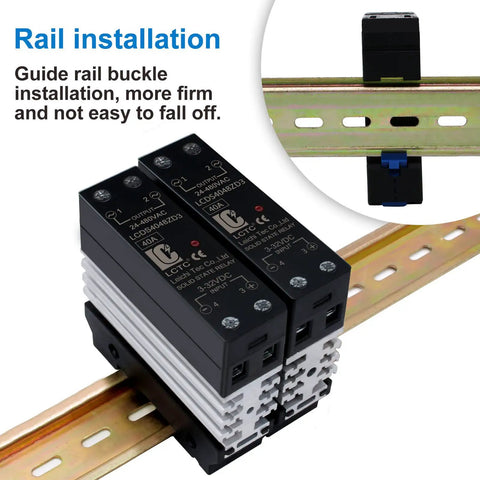

✅ Includes DIN rail clips for quick, secure mounting in distribution boxes
✅ No external heatsink needed for many installations; test under load to verify operation

💡 What is a DIN rail solid state relay with built-in heatsink used for in industrial control panels? A handy device for enabling safe, reliable switching of AC loads from a low-voltage control signal in compact control enclosures. - DIN rail mounting for quick panel integration - Integrated heatsink helps manage heat in compact designs - 24-480V AC output supports many loads
