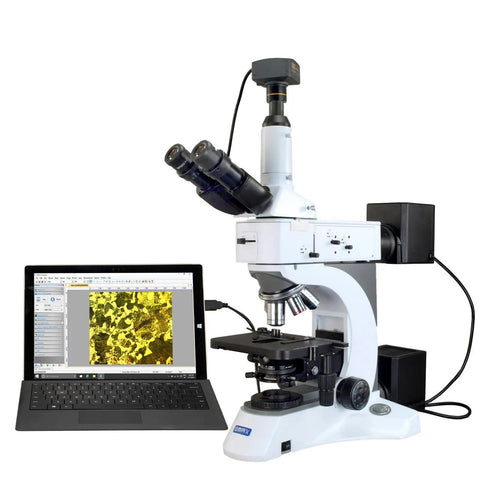

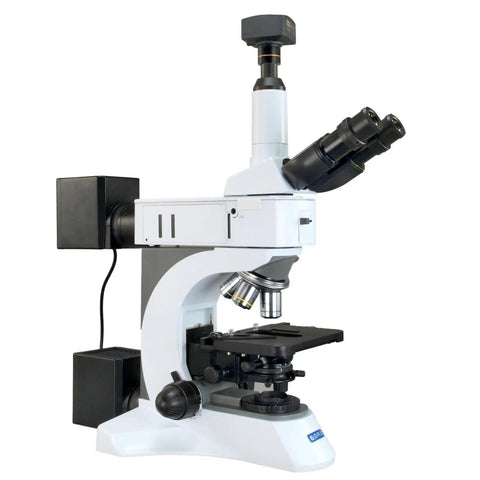

Digital Trinocular Metallurgical Microscope With USB 3.0 Camera, 10MP, 1500X Max Magnification, 50X To 1500X Range, EW10X/22 And EW15X Eyepieces, Plan Infinity Achromatic Objectives, Built For Lab Pros, Research And Class Projects

Trinocular Metallurgical Microscope Kit with USB 3.0 Camera
✔️ 50X-1500X, plan infinity achromatic; trinocular with EW10X/22 EW15X

This digital metallurgical microscope is built for lab pros, researchers, and class projects. Use it for metallurgical analysis, mineral ID, crystal inspection, and IC examination in classrooms, labs, or research facilities.

✅ Eyepieces EW10X/22 and EW15X for high eyepoint viewing
✅ Plan infinity achromatic objectives: 5X, 10X (darkfield/brightfield), 20X (darkfield/brightfield), 40X (spring), 50X (spring), 100X (dry, spring), 100X (oil)
✅ Head: Siedentopf trinocular, 30 degrees inclined, 360 degrees rotatable; interpupillary distance 48-75mm; diopter ring
✅ Magnification range: 50X-1500X total
✅ Stage: double-layer mechanical stage, 74mm x 50mm translational range; 186mm x 138mm
✅ Polarizing kit: polarizer and analyzer plates that slide in/out of the light path
✅ Illumination: 24V/100W Halogen lamps for transmitted and reflected light, intensity adjustable
✅ Color filters: blue, green, yellow, and white for reflected light; blue for transmitted light
✅ Digital camera: 10MP, USB 3.0, 0.5X reduction lens, calibration slide, cross-platform software
✅ USB 3.0 cable included; 5-year warranty against manufacturing defects

💡 What is a digital metallurgical microscope used for in lab settings?

This handy device helps with precise materials analysis, mineral ID, crystal inspection, and IC examination across education and research settings.

- high-resolution imaging with USB 3.0 camera
- plan infinity achromatic optics for sharp detail
- Siedentopf trinocular head aids teaching and documentation
✝️
