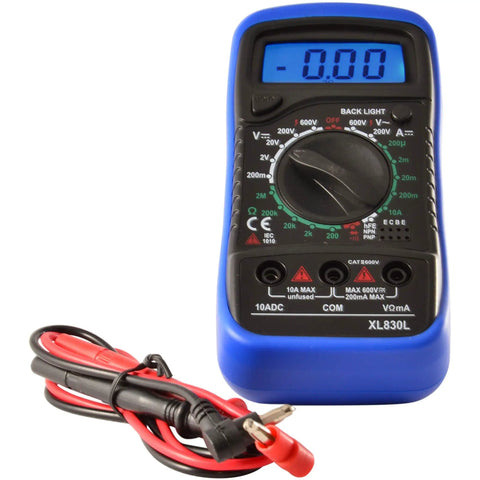

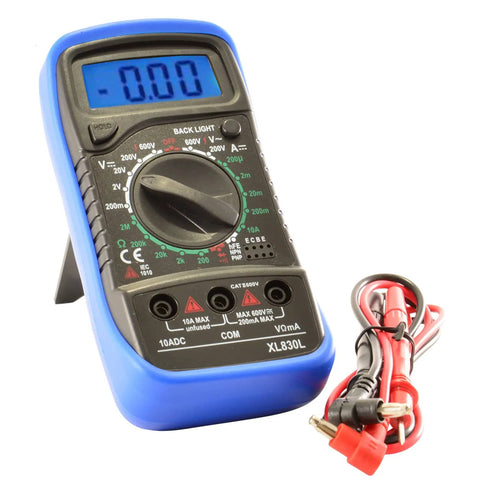

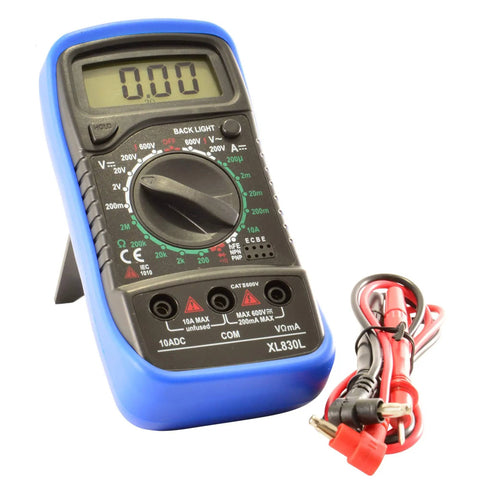

Digital Multimeter XL830L With AC And DC Voltage Measurement Current Resistance And Continuity Tester With Buzzer Diode And Transistor Testing For Electronics Projects And DIY Troubleshooting

XL830L Digital Multimeter - AC/DC volts, current, resistance ✔️ AC/DC volts, current, resistance, diode & transistor tests with buzzer

Set up for bench work or field service, this compact multimeter measures AC/DC voltage, current, resistance, and performs diode and transistor checks. It’s ideal for electronics projects, troubleshooting, and quick circuit validation.

✅ DC Voltage Modes: 200mV (100µV), 2V (1mV), 20V (10mV), 200V (100mV), 600V (1V)
✅ DC Current Modes: 200µA (0.1µA), 2mA (1µA), 20mA (10µA), 200mA (100µA), 10A (10mA)
✅ AC Voltage Modes: 200V (100mV), 600V (1V)
✅ Continuity Test with audible buzzer
✅ Diode Test: approximate forward voltage drop
✅ Resistance Test: 200Ω (0.1Ω), 2kΩ (1Ω), 20kΩ (10Ω), 200kΩ (100Ω), 2mΩ (1kΩ)
✅ Transistor hFE Test: NPN & PNP 0-1000 3V 10µA
✅ Includes probes and 9V battery; ships in retail box

💡 What is a digital multimeter used for in electronics projects? A handy tool for diagnosing circuits and verifying signals. - Measuring voltage, current, and resistance to confirm circuit behavior - Checking diodes and transistors to validate component health - Quick data hold and back-light features to ease field troubleshooting
