Diffuse Reflective Optical Fiber Sensor Probe For Photoelectric Detection, M4 Amplifier Fiber Sensor With 2mm Outer Diameter, 1m Cable, 0 To 600 mm Range, TPV Housing, Durable Industrial Grade
✔️ 2mm OD, 1.0mm ID, 1m cable, range 0-600 mm, TPV housing

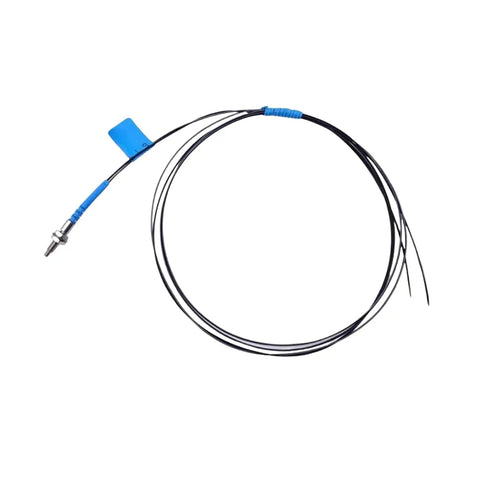

The PR4Y10 diffuse reflective optical fiber sensor probe is built for rugged industrial use, delivering precise presence detection and position sensing in automation, testing rigs, and production lines. With a 2 mm outer diameter fiber and a 1.0 mm core, a 1 m lead, and a TPV housing, it's ready for harsh environments and long service life. Color: PR4Y10 (M4).
| Dimension | Metric | Imperial |
|---|---|---|
| Outer fiber diameter | 2.0 mm | 0.079 in |
| Fiber core inner diameter | 1.0 mm | 0.039 in |
| Cable length | 1.0 m | 39.37 in |
| Range | 0-600 mm | 0-23.62 in |
✅ 2 mm outer diameter optical fiber with 1.0 mm inner diameter
✅ Diffuse reflective induction mode for stable sensing in cluttered spaces
✅ TPV housing provides waterproofing, high-temperature resistance, and corrosion protection
✅ 1 m flexible cable with high bend tolerance for durable service
✅ Strong signal transmission and anti-interference performance for reliable operation
💡 What is a diffuse reflective optical fiber sensor used for? Handy device for automation lines that detects presence, position, and counting.
- Detects presence or distance via reflected light from the fiber tip
- Handy for tight spaces like electronics assembly, battery testing, and labeling
- Provides fast signal transmission and strong interference rejection for stable operation
