Deutsch Pin Kit 12 16 20 Size Male And Female Terminals With Closed Barrel Contacts Kit 170 Pieces For DTP DT DTM Series Connectors Crimp Wire Range 22 To 12 AWG

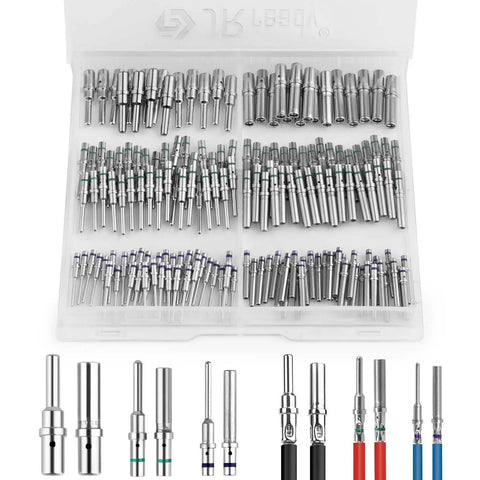

✔️ Includes sizes 12,16,20: 170 total pieces with 15/35/35 pairs

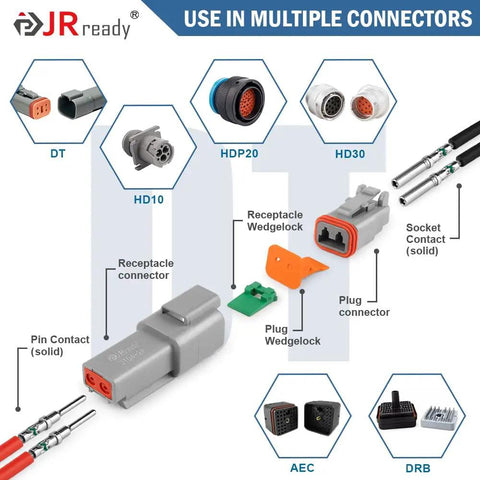

This 170-piece terminal kit provides male and female crimp terminals for Deutsch DTP/DT/DTM and other series like HD30 and HDP20, designed to fit wire sizes 22-12 AWG across 0.156-0.312 inches diameter depending on size. It is nickel-plated for corrosion resistance and wear, offering reliable connections. Adapter connectors are compatible with Deutsch series DTP, DT, DTM, HD30, HDP20, DRC, DRB, HD10, DTHD, and Jiffy Splice lines. For best results, use a professional 4-indent crimping tool from JRready to ensure crimp quality.

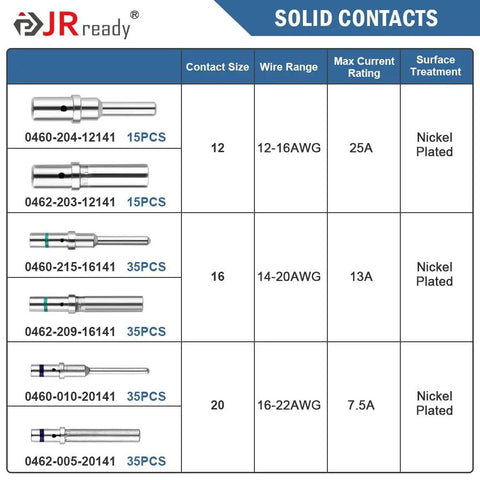

✅ Size 12: 15 pairs; 16-12 AWG; dia 0.222-0.284 in; pin 0460-204-12141; socket 0462-203-12141; max 25A
✅ Size 16 with green stripe: 35 pairs; 20-14 AWG; dia 0.250-0.312 in; pin 0460-215-16141; socket 0462-209-16141; max 13A
✅ Size 20 with purple stripe: 35 pairs; 22-16 AWG; dia 0.156-0.218 in; pin 0460-010-20141; socket 0462-005-20141; max 7.5A
💡 What is a Deutsch DTP/DT/DTM terminal kit used for in automotive wiring harness assemblies? This handy kit helps replace worn terminals and keeps Deutsch-style connectors secure in harnesses.
- Compatible with DTP/DT/DTM and similar Deutsch family connectors
- Terminates 12-20 AWG and 22-16 AWG wire ranges depending on size
- Nickel-plated terminals resist corrosion and wear for long life

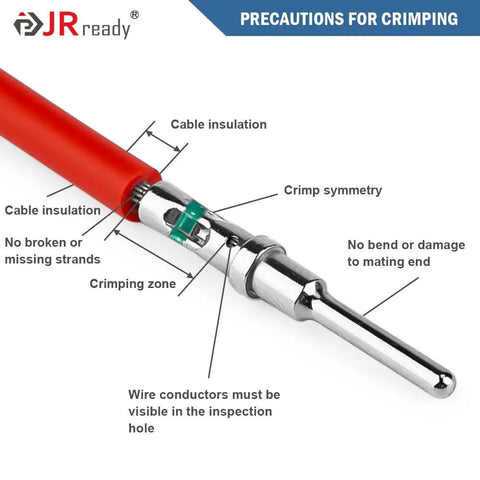

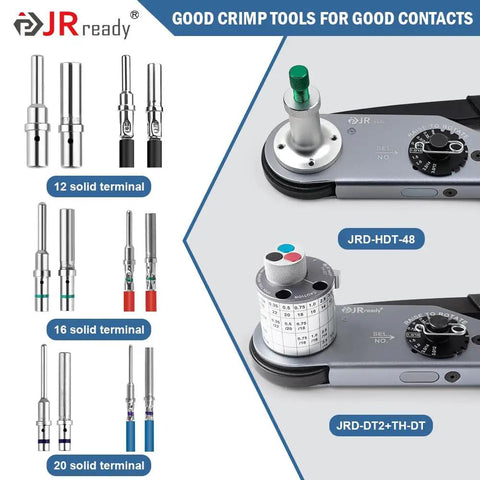

- Best results with a professional 4-indent crimping tool
