DC Brushless Lathe Spindle Motor Kit 750W 110V For CJ 0618 Mini Lathe With 4000 RPM Spindle Main Control Board Controller Card Drive Plate And Mounting Hardware Awesome Upgrade

750W DC Brushless Lathe Spindle Kit for CJ0618 Mini Lathe

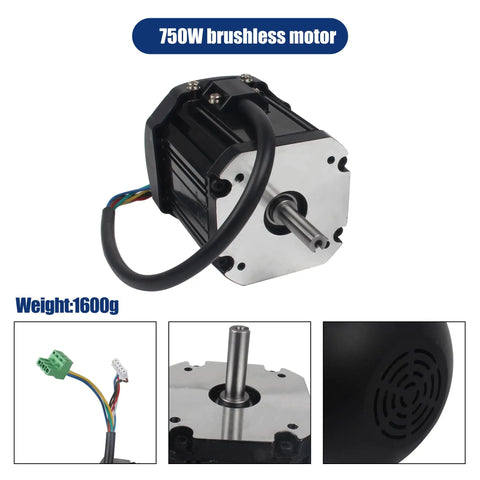

✔️ 750W brushless DC motor, 110V input, single-unit 3000-4000 RPM, 1.74kg

This DC brushless lathe spindle motor upgrade is designed for CJ0618 mini lathes and similar compact CNC machines. It’s typically used in hobby shops and light manufacturing for precise turning, threading, and component fabrication.

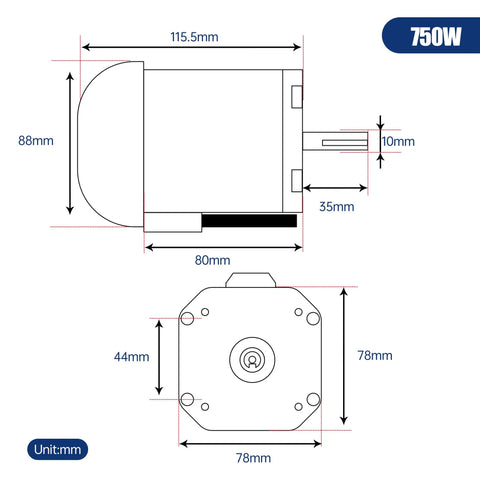

✅ Motor size and mounting specs: 115.5mm L × 78mm W, shaft 10mm
✅ Mounting: 52mm hole pitch, M5 holes, 21×4mm keyway
✅ Drive plate: 166.5×96mm, 3mm holes; weight 1.74kg
✅ Speed and life: 3000-4000 RPM; >30,000 hours
✅ Input/output: 110VAC in, 110VDC out; 450-1100W compatibility

💡 What is a brushless lathe spindle motor kit used for in small CNC lathes such as CJ0618?

A handy upgrade that improves speed control, torque, and reliability in compact lathes.

- Higher starting torque and smoother operation - Longer motor life with low maintenance - Improved spindle speed control for precise cuts - Broad compatibility with 110V control panels and CJ0618 family
