MSH-26C 1/4 to 3/8 Inch Aluminum Flexible Coupling NBK Japan for Precision High Speed Applications

MSH-26C Aluminum Flexible Coupling 1/4-3/8 Bore NBK Japan - Handy shaft coupling for precision machinery
✔️ Aluminum MSH-26C, OD 26 mm (1.02 in), L 31 mm (1.22 in), bore 1/4-3/8 in (6.35-9.53 mm), 24,000 RPM max, 2.48 N·m instant torque, angular 5°, axial ±0.01 in, NBK Japan, 1 pc

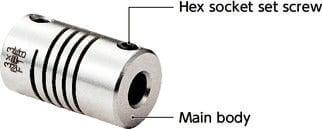

MSH-26C is a lightweight aluminum flexible coupling from NBK Japan, designed to connect shafts with small misalignment in automation, CNC, and robotics applications. This handy coupling helps maintain alignment and smooth torque transfer in compact drive lines.

✅ Outside Diameter: 26 mm (1.02 in)
✅ Length: 31 mm (1.22 in)
✅ Bore: 1/4-3/8" (6.35-9.53 mm)
✅ Material: Aluminum
✅ Max Rotational Speed: 24,000 RPM
✅ Torque (Instantaneous): 2.48 N·m
✅ Torque (Single Direction): 1.24 N·m
✅ Torque (Forward/Reverse): 0.62 N·m
✅ Max Angular Misalignment: 5°
✅ Max Axial Misalignment: ±0.01 in (±0.25 mm)
✅ P/N: MSH-26C-1/4-3/8
✅ Pack: 1 pc
💡 What is a flexible aluminum shaft coupling used for in machinery? This handy connector helps join shafts while allowing small misalignments and smooth torque transfer. - Absorbs minor angular and axial misalignment to reduce bearing loads - Enables compact, high-speed drives with smooth torque delivery - Handy for CNC, robotics, and automation tasks with limited space - Improves system reliability by damping shocks and vibrations This handy coupling keeps precision drives reliable in real-world applications.

MSH-26C 1/4"-3/8" Flexible Coupling NBK Japan

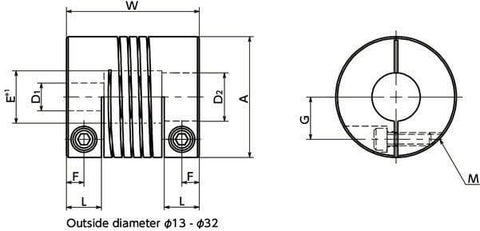

Coupling P/N MSH‐26C‐1/4‐3/8 Material Aluminum Outside Diameter (mm) 26 Length (mm) 31 Max Rotational (RPM) 24,000 Torque (N･M)‐Instantaneous Transmission 2.48 Torque (N･M)‐Single ‐Direction Rotation 1.24 Torque (N･M)‐Forward/Reverse Rotation 0.62 Max Angular Misalignment (°) 5 Max Axial Misalignment (inch) ±0.01 Standard Bore Diameter (D1‐D2) 1/4‐3/8
