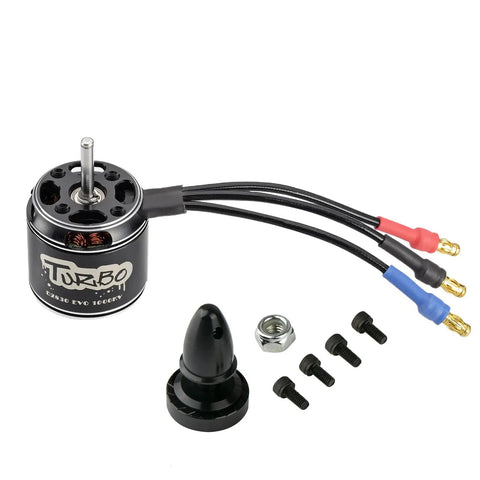

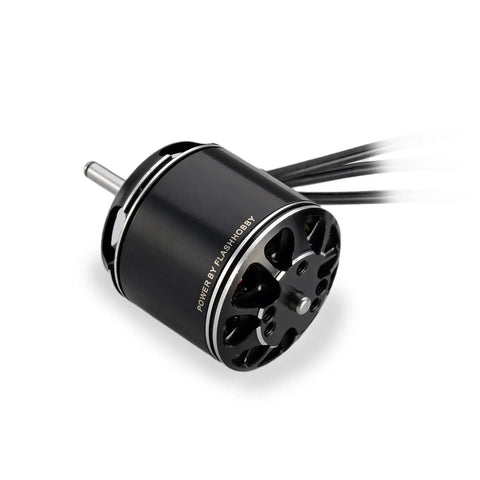

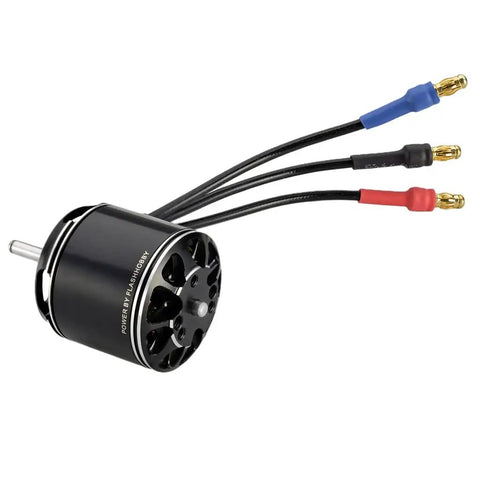

D2830EVO 1000KV RC Brushless Motor 2212 Outrunner For UAV Aircraft RC Planes Fixed Wing Helicopters And Robotic Arm Part Beefy Torque Fast Spin High Temp Copper Windings NSK Bearings
✔️ 28x30mm body, 3.0x45mm shaft, 22mm stator, 12N14P, 3-4S Lipo
This high‑performance brushless motor packs a beefy torque and fast spin for UAVs, RC planes, helicopters, and robotic arms. Its high-temp copper windings and NSK/NMB bearings are built to handle demanding missions while keeping things smooth and reliable.
✅ Weight: 68.1 g (including wires)

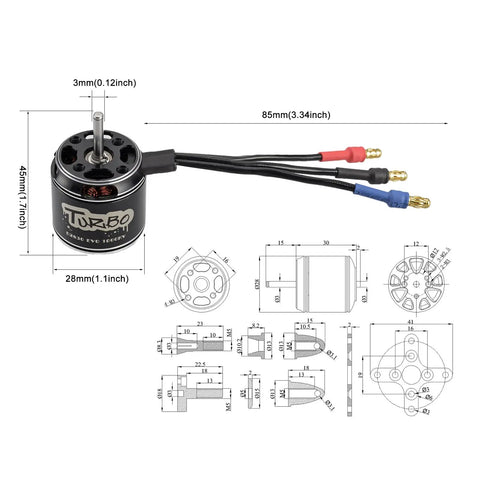

✅ Motor size: 28x30 mm (1.10 x 1.18 in); Shaft: 3.0x45 mm (0.12 x 1.77 in)
✅ Stator: 22 mm Ø x 12 mm (0.87 x 0.47 in)
✅ Configuration: 12N14P; 3-4S LiPo compatible
✅ Mount: 16 x 19 mm (0.63 x 0.75 in)
✅ Working temp: -0°C to +80°C
✅ PWM control: 900-2100 μs with ESC
✅ Max watts: 195W (850KV) / 196.6W (1000KV) / 324.4W (1300KV)
✅ Max current: 15.87A / 16.8A / 28.3A
✅ No-load current: 0.68A / 0.86A / 1.24A
✅ Resistance: 145.4 mΩ / 92.8 mΩ / 63 mΩ
✅ Prop suggestions: 11" for 850KV; 10" for 1000KV/1300KV
✅ Bearings: NSK/NMB high-temp bearings
This compact, beefy motor is a solid choice for hobbyists and builders working with UAVs, multi-rotors, RC planes, helicopters, and even robotic arms in small-scale automation. It delivers reliable performance across a range of 3-4S LiPo setups and keeps a cool head under load with quality bearings and copper windings.
💡 What is a high KV brushless motor used for in RC aircraft and robotic projects?
This motor is handy for providing fast spin-ups and strong torque in compact builds. - High KV motors deliver fast spin-ups for quick lift and agile control. - Handy for lightweight UAVs and robotic arms requiring compact power. - Pair with the right ESC and LiPo to optimize performance while preventing overheating.✝️
