D1161 3.3 Inch Frame Open Ventilated Shaded Pole General Purpose Motor With Sleeve Bearing 1/15 to 1/25 HP, 1600 RPM, 115V, 60 Hz, 2.0-2.9A, Workhorse Sleeve Bearing Motor for HVAC and Small Machinery

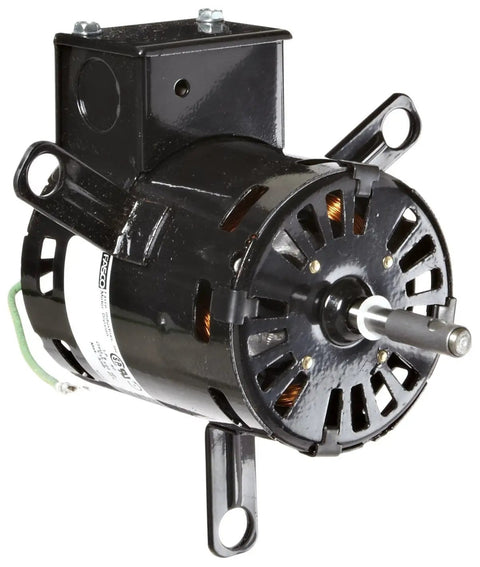

D1161 Open-Ventilated Shaded Pole Sleeve Bearing Motor
✔️ 0.04-0.067 HP, 115V, 60Hz, 2.0-2.9A, 1600 RPM, CCW

This compact single-phase motor uses an open ventilated shaded pole design with a sleeve bearing, ideal for HVAC fans, blowers, and small machinery. It is thermally protected and UL/CSA certified for reliable operation.

✅ Power: 0.04-0.067 HP (0.03-0.05 kW)
✅ Frame: 3.3 in frame (83.8 mm)
✅ Speed: 1600 RPM
✅ Voltage / Frequency: 115V, 60 Hz
✅ Current: 2.0-2.9 A
✅ Shaft: 5/16 in dia x 2 in length (7.94 mm x 50.8 mm)
✅ Motor length: 4-1/4 in (107.95 mm)
✅ Cooling/Design: Open ventilated shaded pole with sleeve bearing; air over
✅ Certifications: UL recognized; CSA/ULc certified; thermally protected

💡 What is a shaded pole motor used for in HVAC and small machinery? This handy motor is a simple, budget-friendly choice for driving fans and small blowers. - used for compact fans and blowers in HVAC systems - drives small machinery like conveyors and fans - sleeve bearing design lowers maintenance costs - UL/CSA certified for safety and reliability

✝️
