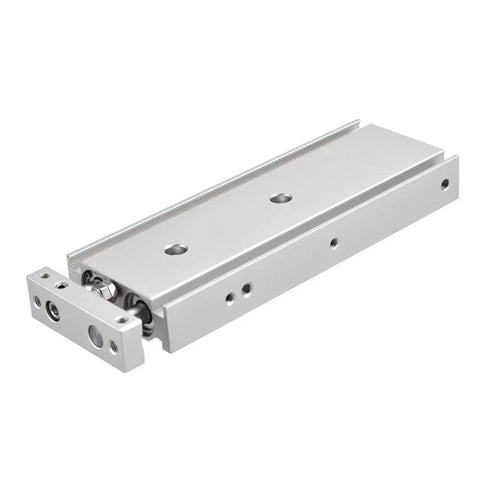

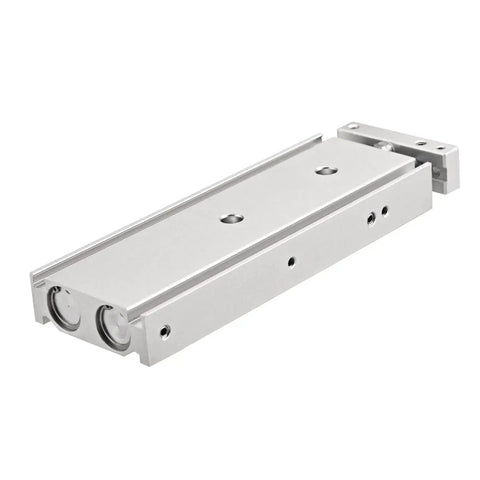

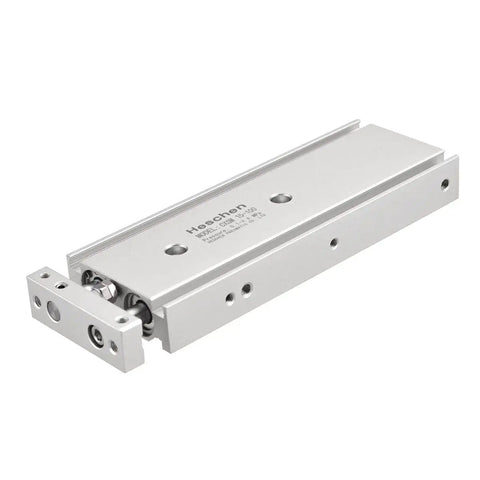

CXSM 15-100 Dual Rod Air Cylinder, 15mm Bore X 100mm Stroke, Guided Pneumatic Actuator With Magnet, Double Acting Slide Bearing, M5x0.8 Port, Heavy-Duty Industrial Automation Replacement For Precise Linear Motion
✔️ Dual-rod, magnet feedback, precise ±0.1° non-rotate in a pack of 1
The 15-100 dual-rod air cylinder delivers rugged, precise linear motion for heavy‑duty automation. Built from aluminum with magnetic position sensing, it’s designed for four‑way mounting and easy drop‑in replacement in CXSM‑style setups. The 15 mm bore and 100 mm stroke provide strong, controlled travel in demanding industrial environments.

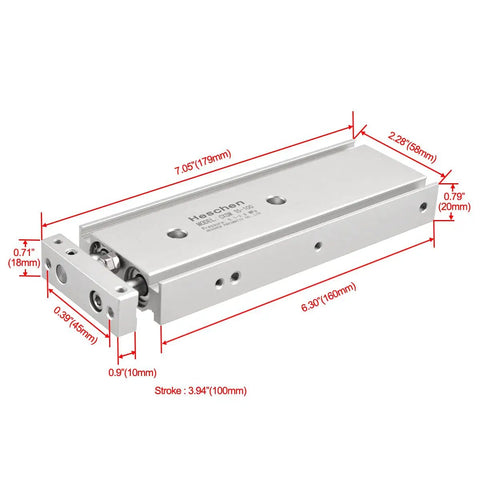

✅ 15 mm bore x 100 mm stroke
✅ Dual-rod with integrated guide plate for higher thrust
✅ ±0.1° non-rotating accuracy
✅ Aluminum body with corrosion resistance

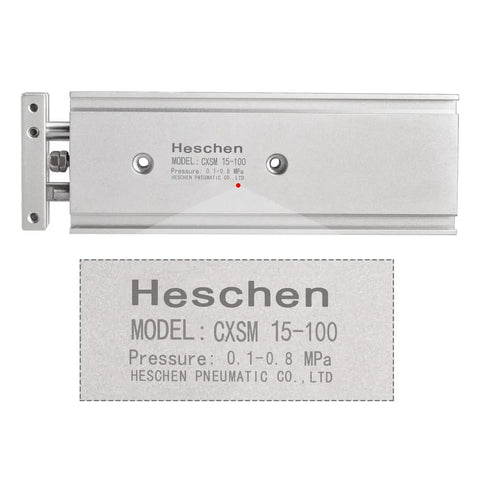

✅ 0.1-0.8 MPa operating pressure (15-116 psi)
✅ Retract stroke adjustment 0-6 mm and end cushions
✅ Built-in magnetic ring for position sensing; compatible with D-Z76L
✅ Four-way mounting; M5x0.8 port
💡 What is a dual-rod pneumatic cylinder used for?
A dual-rod pneumatic cylinder provides precise, strong linear motion for automation and manufacturing processes.
- Handy for high-load, straight-line actuation in automation systems
- Ensures minimal rotation thanks to an integrated guide plate
- Works with magnet feedback and standard switches for PLC sync
- Fits four-way mounting patterns for tight spaces
