CSK20PP One way Bearing with Keyway Sprag Freewheel Backstop Clutch

$58.99
SKU: Kit10970
UPC: 00193019039700
Item: CSK20PP Bearing
Type: One-Way Clutch Bearing
Inner Diameter: 20mm
Outer Diameter: 47mm
Width: 14mm

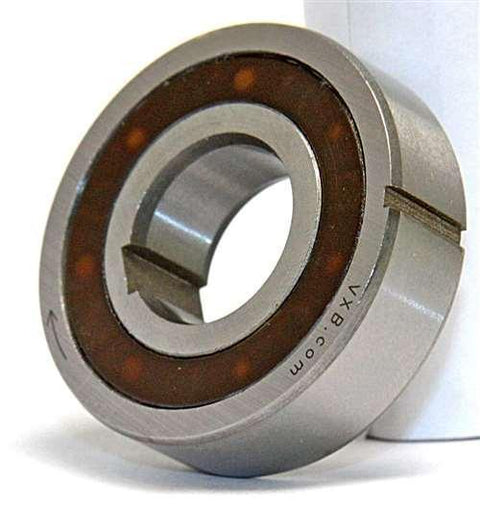

CSK20PP One-way Clutch Bearing
20mm x 47mm x 14mm

The CSK series is a one-way (clutch) bearing.One way Bearing Sprag/Clutch Freewheel and also called as Backstops. The one-way bearings are used in any application that requires one direction rotation, such as mining, hydraulic, textile, printing and washing machines, conveyor systems that carry products to a higher level should not be reversed because of gravity during any power shortage.

  • Item: CSK20PP Bearing
  • Type: One-Way Clutch Bearing
  • Inner Diameter: 20mm
  • Outer Diameter: 47mm
  • Width: 14mm
  • Torque: 40 N.m
  • Quantity: One Bearing


Dimension
Torque N.m
d
D
W
20mm
47mm
14mm
40

Share

Facebook X (Twitter) Pinterest

Customer Reviews

Based on 1 review
0%
(0)
100%
(1)
0%
(0)
0%
(0)
0%
(0)
H
Henry
Excellent clutch

This is the cheapest back-stopping sprag clutch I could locate but quality is not lost with affordability. For my low-speed applications it works wonderfully. At low speeds there is near zero back-spin. Higher speeds have a minute amount before fully engaging sprags. The dust seal is quite good but did start to come out once when I drop the bearing on the workbench.
