CR8 V2 2.4GHz Nano Receiver With 75mm UFL Dual Antenna For FPV Drones Tiny Whoop Micro Quads And Fixed Wing RC Planes Lightweight 0.8g PCBA Delivers Stable Flight Performance
✔️ 0.8g PCBA, ENIG plated, 75mm antennas, SX1281 ELRS, single unit
The CR8 V2 2.4GHz ELRS Nano Receiver is a compact, lightweight flight receiver designed for FPV drones, including Tiny Whoop, toothpick builds, micro quads, and small fixed-wing RC aircraft. It plugs into standard ELRS transmitters and provides a reliable control link with low power draw.
✅ Weight: 0.8 g PCBA
✅ Dimensions: 18.9 x 11.2 x 1 mm

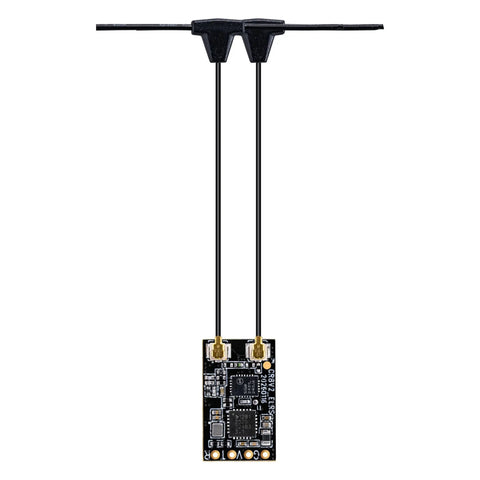

✅ 75 mm T antennas installed on receiver

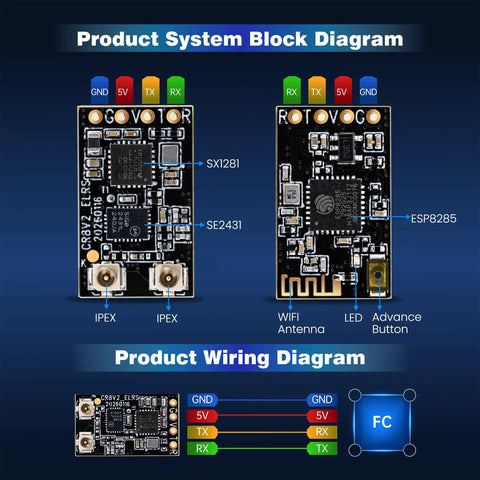

✅ Open-source ELRS, SX1281 front-end
✅ 5V DC input, 30 mA draw

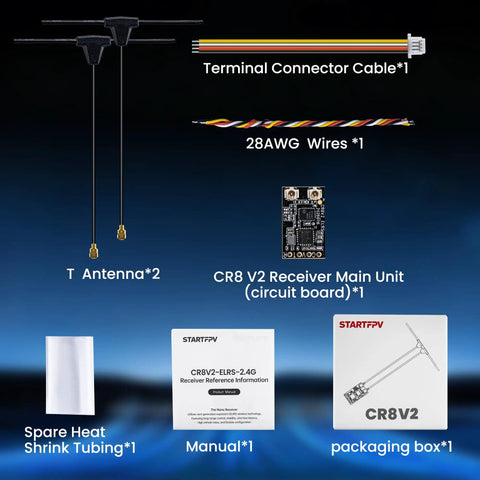

✅ Package includes 1x CR8 V2 ELRS Nano Receiver, 2x 75mm antennas, heat-shrink tube, 2x wire, and user manual
💡 What is a 2.4GHz ELRS nano receiver used for in FPV drones? This handy piece helps you maintain solid control on small racing and freestyle quads.
- For Tiny Whoop and micro quads, it provides a lightweight, low-power link
- Uses ExpressLRS with 100mW telemetry and SX1281 front-end for strong range

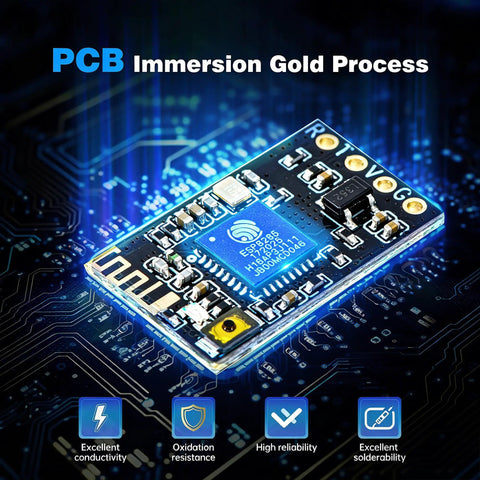

- ENIG plated PCB enables easy soldering and long life
- Compatible with standard ELRS transmitters and FC BEC power
