Condenser Fan Motor Replacement For HVAC One Tenth Horsepower 1100 RPM 208 To 230 Volt CCW Rotation Half Inch Shaft Five And A Quarter Inch Stud Pattern Five And Five Eighths Inch Body Diameter Three And Three Quarter Inch Case Length Sleeve Bearing

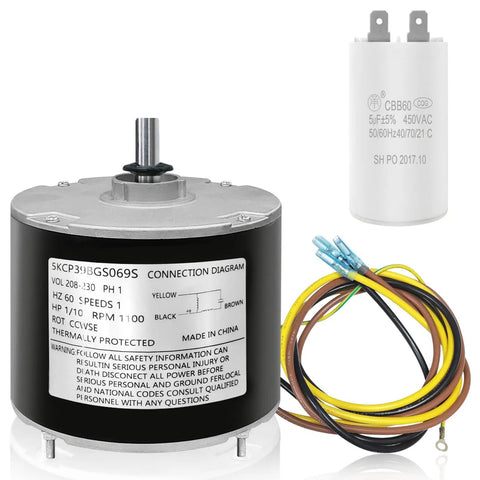

Condenser Fan Motor for HVAC Replacement, 1/10 HP, Single
✔️ 1/10 hp, 1100 RPM, 208-230V, CCW, 1/2 in shaft, 5-1/4x5-1/4 stud

This single-unit condenser fan motor is designed as a direct replacement for outdoor HVAC condenser fans. It delivers 1/10 hp, 1100 RPM, and CCW rotation for compatibility with 208-230V circuits.

✅ 1/10 hp, 1100 RPM, 0.75 A, 208-230V
✅ CCW rotation, sleeve bearing, 40° ambient
✅ Shaft 1/2 in x 1.5 in
✅ Stud pattern 5-1/4 x 5-1/4 in; body dia 5-5/8 in
✅ Case length 3-3/4 in

💡 What is a condenser fan motor used for in HVAC systems?

In simple terms, it powers the outdoor condenser fan to move air across the coils for heat rejection and overall system efficiency.

- Provides outdoor heat rejection by moving air across condenser coils
- Fits standard 208-230V systems with CCW rotation
- Uses sleeve bearing for easy maintenance in outdoor conditions
- Sized around 1/10 HP and 1100 RPM for compact AC units
✝️
