Concealed Hinge Jig With Quick Clamp, Includes 35mm And 26mm Drill Bits, Aluminum Cabinet Door Locator Tool With Depth Stop, Adjustable For 15 To 30mm Woodworking Thickness, Universal Euro Style Hinge Jig

Concealed Hinge Jig Kit with Quick Clamp and Dual Bits
✔️ Includes 35mm and 26mm carbide bits; fits 15 to 30mm thickness

This concealed hinge jig is a compact, durable tool designed for Euro-style cabinet hinges. It clamps quickly with a single handle, delivers precise drilling for 35mm and 26mm cup holes, and works across doors from light to medium thickness. It’s perfect for kitchen cabinets, bathroom vanities, and shop cabinetry projects.

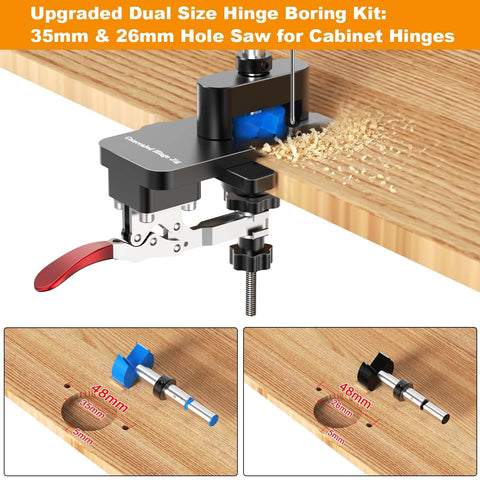

✅ Dual bits: 35mm and 26mm carbide bits included for universal hinge compatibility

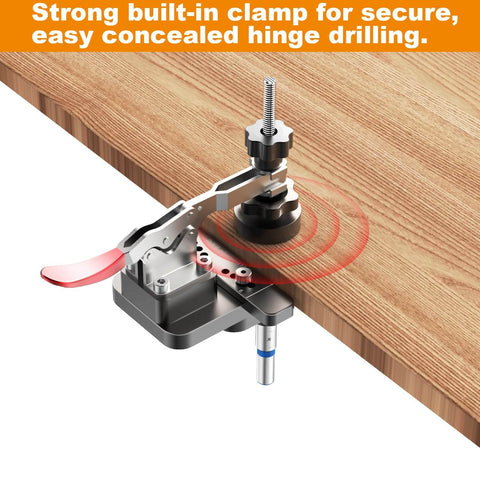

✅ 1-second single clamp design for fast, secure mounting
✅ Adjustable depth stops with limit rings to prevent drilling through
✅ Works on 15mm to 30mm thick boards for wide door range
✅ CNC-machined 6061 aluminum body for durability and precise hole alignment

💡 What is a concealed hinge jig used for in Euro-style cabinet installations?

This handy tool helps ensure precise hinge placement and repeatable drilling across common cabinet sizes.

- precise cup drilling for 35mm and 26mm hinge patterns
- quick clamp action reduces setup time and keeps hinges aligned
- works with 15mm to 30mm thick doors for a wide range of cabinets
