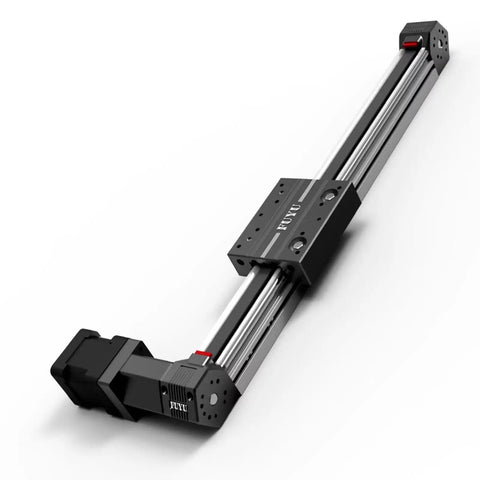

Compact Linear Guide Belt Drive Module For CNC With Nema 17 Stepper Motor 100mm Stroke High Speed 800mm Per Second Low Noise Under 65 dB Lightweight Aluminum Linear Stage For Precise Motion And Easy DIY Projects
✔️ 30mm wide aluminum rail, 800mm/s speed, low noise under 65dB
This compact linear guide belt drive module is built for CNC machines and DIY motion projects. It combines a precision aluminum profile with a synchronous belt drive to deliver fast, smooth motion in a compact footprint. Ideal for compact CNC machines, 3D printers, and automated test rigs.

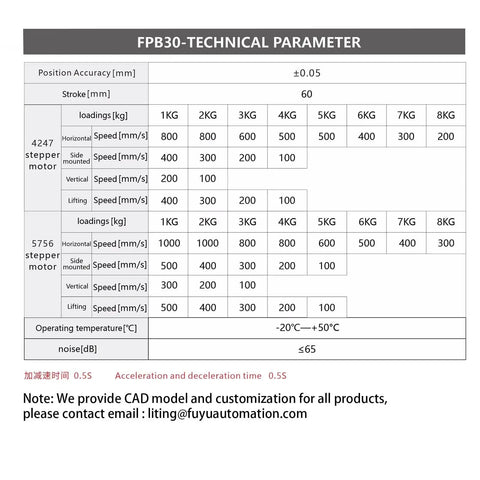

✅ 800mm/s high-speed operation via belt drive
✅ ≤65dB low-noise performance for quiet operation
✅ Stroke up to 3500mm; default 100mm; customizable stroke and motor
✅ Nema 17 (4247) motor standard; supports multi-axis options
✅ Load options: Horizontal 8kg, Vertical 2kg, Side 4kg, Flip 4kg
✅ Service life up to 6000km and 860,000 cycles
✅ Lightweight 30mm width aluminum profile keeps footprint compact
💡 What is a compact linear guide belt drive module used for in CNC machines and automation setups? This handy device provides precise, smooth motion in tight spaces. - It’s handy for precise positioning in small machines - Common uses include CNC mills, 3D printers, laser engravers, and automated benches - How to pick: stroke length, motor option, multi-axis capability
