Compact Flush Diaphragm Button Load Cell Stainless Steel IP66 Compression Sensor For OEM Space Constrained Setups 10 To 500 Kg Range 0.5 Percent FS Ideal For Collaborative Robots End Of Arm Tooling And Servo Press Monitoring
✔️ IP66 stainless housing, 10-500 kg range, ±0.5% F.S., 3 m shielded 6-wire

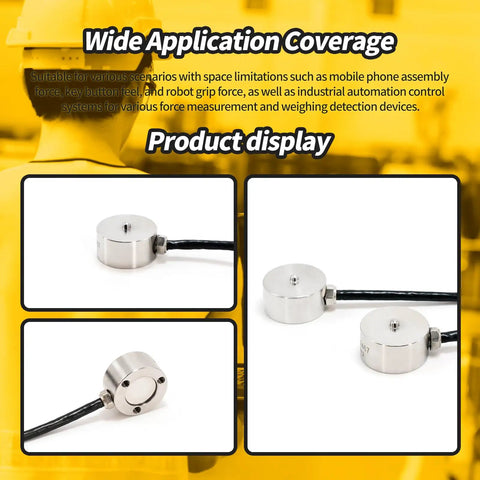

Compact, low-profile force sensor designed to measure direct compression in space-constrained OEM setups. Commonly used in collaborative robot end-of-arm tooling, servo presses, and automated lines where traditional load cells won’t fit, thanks to its flush diaphragm design and rugged stainless steel IP66 housing.
✅ Flush Diaphragm Button Design: housing and diaphragm integrated in one piece
✅ Low-profile, ultra-compact footprint for direct compression measurement in space-constrained OEM integrations
✅ Accuracy: non-linearity and hysteresis within ±0.5% F.S.; repeatability ±0.3% F.S. (factory calibrated)
✅ IP66-Rated Sealed Stainless Steel: dust-tight and water jet resistant for washdown environments
✅ Temperature-Compensated Performance: -20°C to +70°C; sensitivity ±0.1% FS/10°C; zero ±0.1% FS/10°C

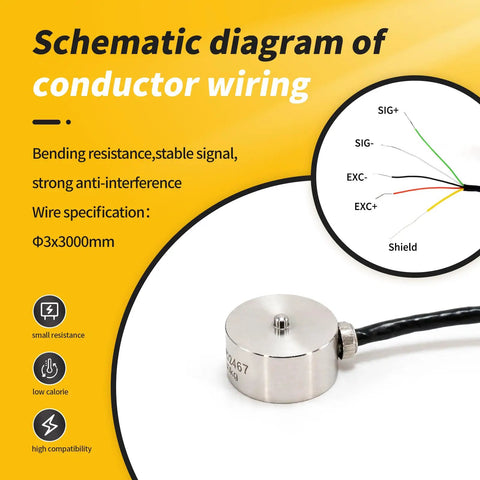

✅ Wiring: 3 m shielded 6-wire interface with Red(EXC+), Black(EXC-), Green(SIG+), White(SIG-), shield; Excitation 5-12V DC, sensitivity 1.5±10% mV/V, input/output ~1000Ω
💡 What is a flush diaphragm load cell used for in automation?

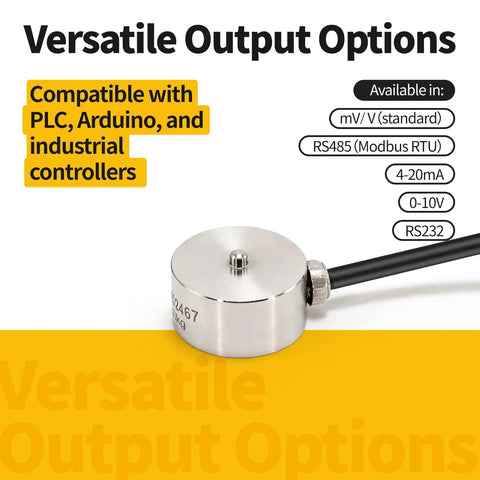

This compact sensor is handy for space-constrained automation setups and precise force readings. - handy for space-constrained automation with direct compression sensing - works with PLC analog inputs and standard DAQ systems - ideal for end-of-arm tooling, servo presses, and robot grippers ✝️
