Compact 50mm 20N Mini Electric Linear Actuator For Cabinets Robotics And Home Automation With Brackets And Window Opener 12V Motor 2 Inch Stroke 4.5 Lbs Max Load Extended 114.5mm Retracted 84.5mm Travel Speed 1.2 Inches Per Second

Compact 50mm 12V Mini Linear Actuator with Brackets
✔️ 50mm stroke, 114.5mm extended, 84.5mm retracted, 20N

This compact 12V mini linear actuator is designed for precise push and pull in cabinets, DIY projects, home automation, robotics, and window openers. It ships with 2 bracket kits for quick mounting on a wide range of surfaces.

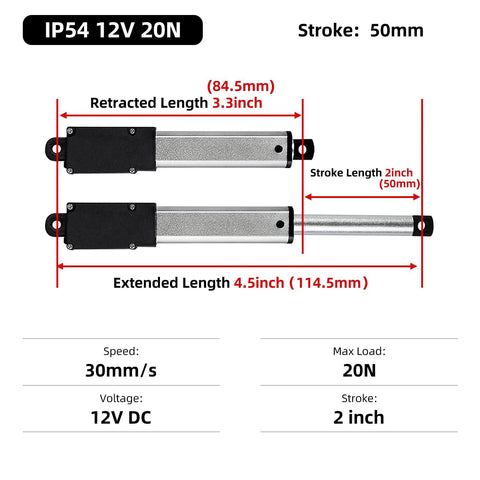

✅ Stroke: 50 mm (2"), Retracted length: 84.5 mm (3.3"), Extended length: 114.5 mm (4.5"), Travel speed: 1.2 in/s (30 mm/s)

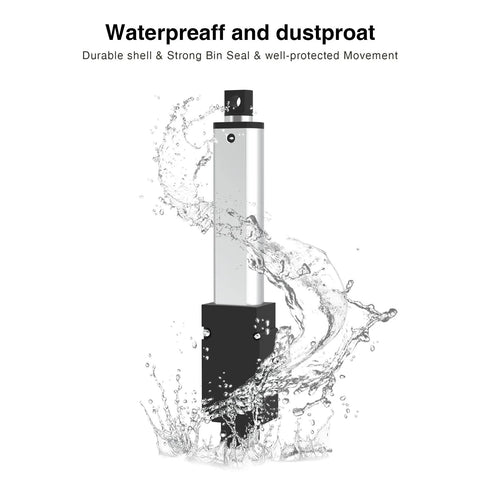

✅ Max load: 20N (4.5 lb), 12V DC motor, built-in limit switch, IP54 protection
✅ Includes: 1 actuator and 2 bracket kits for easy mounting
✅ Material: aluminum alloy body, compact and lightweight

💡 What is a small 12V linear actuator used for in DIY and home automation? It's a handy device that makes cabinets, windows, and robotics projects easier to automate.

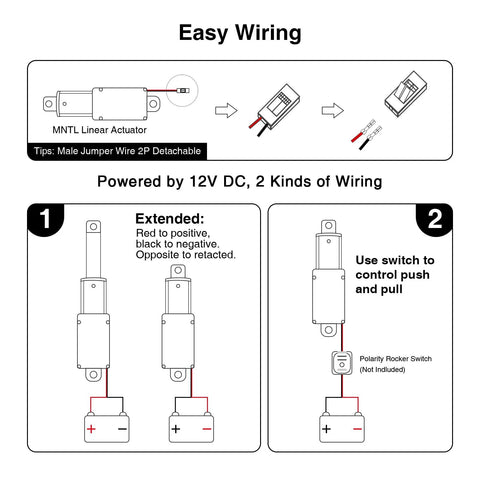

- Use cases: cabinet doors, window openers, robotics - Power and control: 12V DC with built in limit switch - Installation: brackets included for quick mounting - Safety and reliability: aluminum housing, IP54 rating, overload protection
