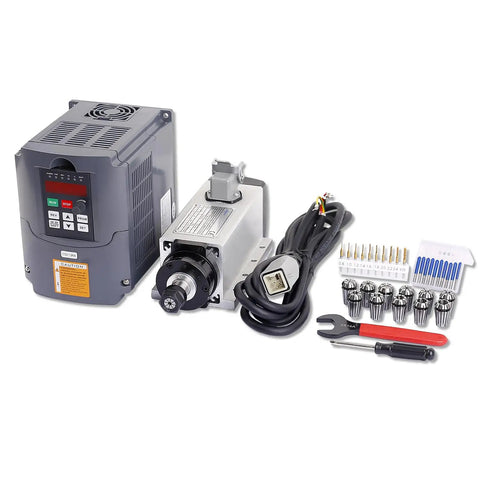

CNC Spindle Motor Kit 110V 1.5KW ER16 High Speed Spindle 0 To 24000 RPM With VFD Ready Drive Includes 9.8Ft 4 Conductor Cable And Easy Hookup For Smooth Milling And Quick Setup
✔️ 1.5kW ER16 spindle, 0-24000 RPM, 110V, 9.8 ft 4-conductor cable
This CNC spindle motor kit combines a high-speed ER16 spindle with a VFD-ready drive for quick setup in hobbyist and small shops. It’s typically used for engraving, light milling, and precision drilling on 110V machines.

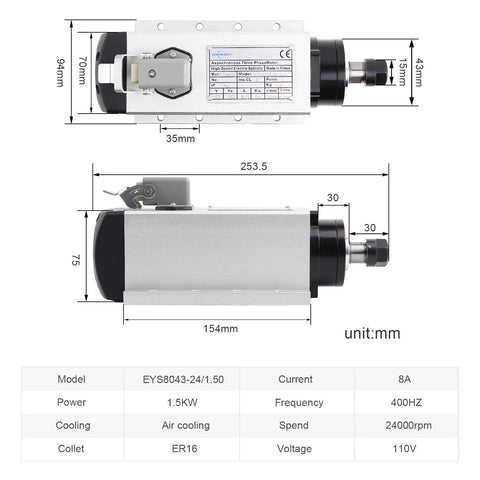

✅ 3-Phase motor, 110V input, 1.5kW, ER16, 0-24000 RPM

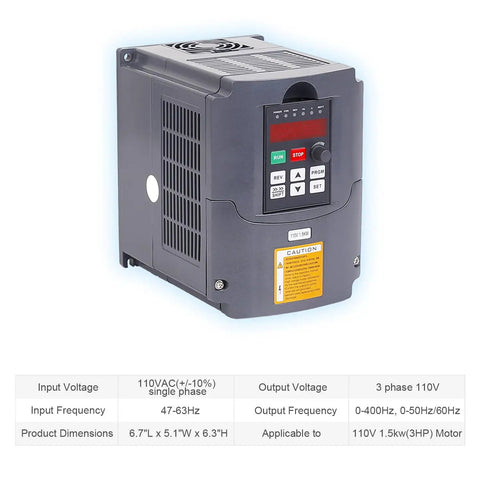

✅ VFD: 1.5kW, Single Phase 110V Input (47-63Hz), 3-phase 110V Output (0-400Hz)

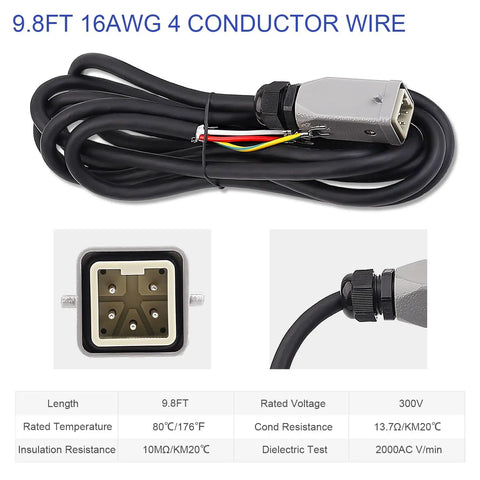

✅ Cable: 9.8 ft, 16AWG, 4-conductor
✅ Rated voltage 300V, rated temperature 80°C/176°F
✅ Cond.resistance 13.7Ω/KM20°C, insulation resistance 10MΩ/KM20°C, dielectric test: 2000AC V/min
✅ Easy to use: plug and play when unboxing
✅ Not recommended for surfacing

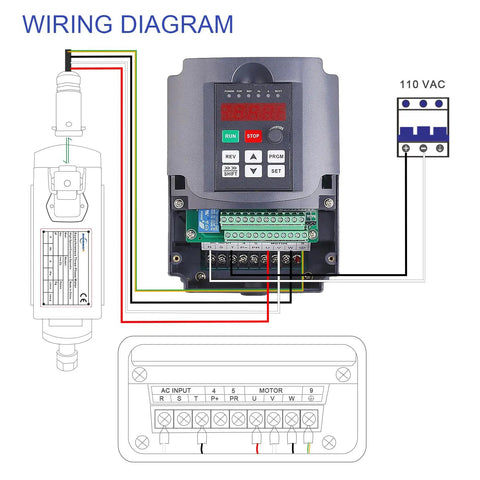

💡 What is a 110V CNC spindle kit with ER16 0-24000 RPM best used for in a home shop? This handy guide covers typical use and setup. - wiring tips for plug-and-play with a VFD-ready drive
- engraving, light milling, and precise drilling applications
- safety and RPM considerations for 0-24000 RPM
