CNC Spindle Motor ER16 500W Air Cooled 52mm Mount 48VDC 12000 RPM 0.6 Nm Torque With ER16 Chuck And 8mm Collet For Engraving Router Milling On Wood PCB Metal

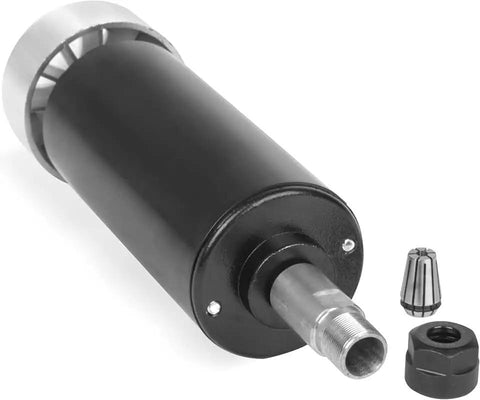

ER16 CNC Spindle Motor 500W, 12000 RPM, 8mm Collet
✔️ 52mm mount, ER16 chuck, 48VDC, 12000 RPM, 0.6 Nm torque, single unit

This CNC spindle motor is a compact air-cooled unit designed to power engraving, routing, and light milling. It uses a standard ER16 collet system and fits a 52mm mount, making it a practical choice for hobbyists, makers, and small workshop setups.

✅ Power: 500W
✅ Collet: ER16
✅ Operating Voltage: 48VDC
✅ Diameter: 52mm
✅ Total length: 200mm
✅ Speed: 12000 RPM
✅ Spindle radial runout: 0.01-0.03mm
✅ Torque: 0.6 Nm

💡 What is a CNC spindle motor used for in typical hobby machining? - Handy for engraving, routing, and drilling on wood, PCB, and metal
- Uses ER16 collet system for easy tooling changes and tight tolerances
- Delivers up to 12000 RPM with low radial runout for clean cuts

✝️
