CNC Ballscrew Kit SFU2010 RM2010 Anti Backlash 20mm Diameter 1500mm Length Lead 10mm With Nut BK And BF15 Bearing End Supports Coupler Nut Housing And Nema 23 Stepper Motor Bracket For Precise Linear Motion

20mm SFU2010 Ball Screw Kit with Nema23 Bracket
✔️ 1500 mm total length, 20 mm dia, 10 mm lead, 1 kit with nut and BK15

This CNC ball screw kit delivers precise, backlash-minimized linear motion in milling machines, CNC routers, and automation setups. It combines the SFU2010 screw with RM2010 nut, BK15/BF15 end supports, a flexible coupler, nut housing, and a mounting bracket designed for Nema 23 motors.

✅ Ball screw diameter: 20 mm (0.79 in)
✅ Lead / pitch: 10 mm
✅ Total length: 1500 mm (59.06 in)

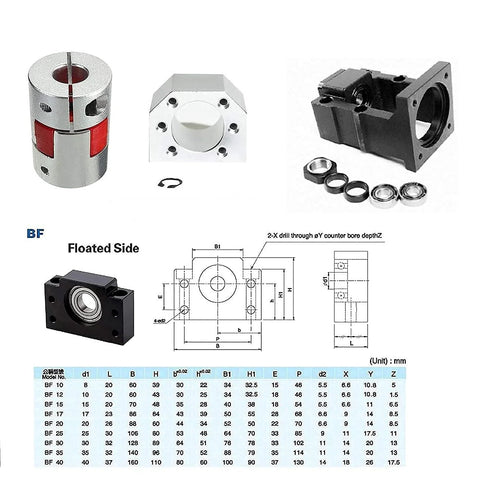

✅ Includes Nut, BK15/BF15 end supports, and coupler

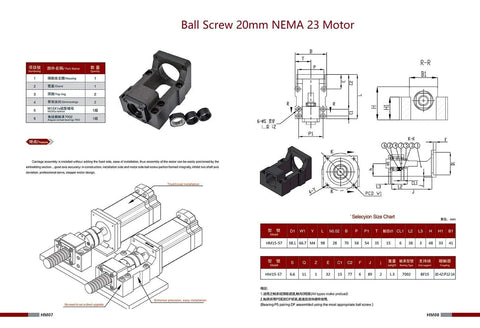

✅ Motor bracket for Nema 23 with mounting hardware

💡 What is a ball screw kit used for in CNC machines with Nema23 mounting? This handy setup provides precise, smooth linear motion and reliable performance.

- Handy for turning rotary motion into precise linear travel in CNC routers and mills - Improves repeatable positioning by reducing backlash in high-speed operations - Includes end supports, motor bracket, and coupler for quick, sturdy installation - Supports long travel with smooth micro-feeding when properly lubricated
