Clevis Hydraulic Cylinder With Four Inch Bore And Eight Inch Stroke Double Acting Steel Welded Design 3000 PSI Two Inch Rod SAE Eight Port Three Quarter Inch UNF Threads Connects To Hydraulic Hose Retracts From Eighteen To Twenty Six Inches

Clevis Hydraulic Cylinder, 4 in bore, 8 in stroke, 3000 PSI
✔️ 4 in bore, 8 in stroke, 2 in rod; SAE-8 port, 18.25-26.25 in single unit

This double-acting, steel-welded hydraulic cylinder is built for heavy-duty use in agriculture, construction, and manufacturing. It connects to hydraulic hoses via a SAE-8 port for quick setup.

✅ 4 in bore
✅ 8 in stroke
✅ 2 in rod diameter
✅ Double-acting, steel-welded design
✅ Max pressure 3000 PSI
✅ SAE-8 port (3/4-16UNF)
✅ Retracted 18.25 in, extended 26.25 in

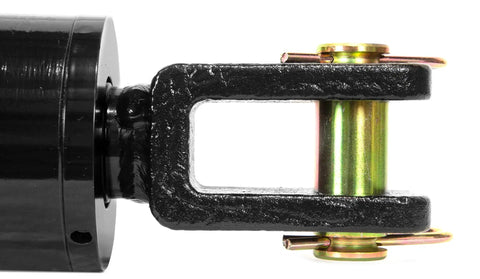

✅ 1 in zinc-plated steel pin
✅ Chrome-plated rod
✅ ASTM A536 65-45-12 ductile iron piston

💡 What is a clevis hydraulic cylinder used for in industrial settings? Choosing the right bore and stroke matters for performance and space. - Bore size determines force capability - Stroke length sets travel distance - SAE-8 port size and 3/4-16UNF threads affect hose compatibility - Steel-welded body and chrome-plated rod improve durability in harsh environments

✝️
