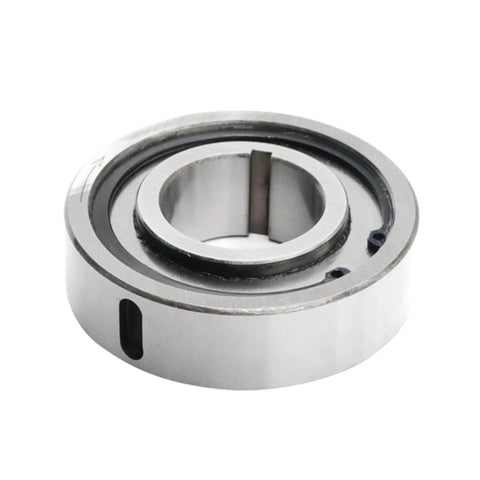

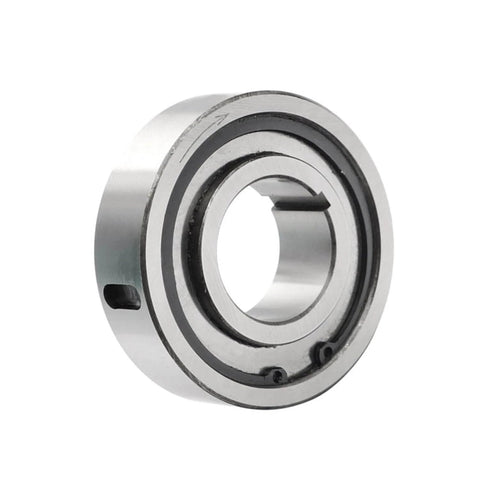

CK-A2562 sprag-type one-way clutch bearing 25x62xx23mm
Regular price
$34.99
Sale price$60.00you save $25.01
CK-A2562, CSK2562
Type / Design
-
Part of the CK-A series: sprag-type one-way (overrunning) clutch bearing. Non-bearing-supported: it does not support significant radial or axial loads on its own.
-
Both the inner race and outer race are keyed (keyways required on shaft and housing).
-
Delivered grease-lubricated.
Key Performance / Dimensional Specs
Based on the manufacturer data:
| Parameter | Value (CK-A2562) |
|---|---|
| Nominal Torque | 145 N·m |
| Overrunning Limiting Speed (Inner Race) | ~1,260 rpm |
| Overrunning Limiting Speed (Outer Race) | ~350 rpm |
| Outer Diameter (D) | 62 mm |
| Width (B) | 23 mm |
| Outer Keyway (b × t) | 4 × 2.5 mm |
| Inner Diameter (d) | 25 mm |
| Inner Keyway (b1 × t1) | 4 × 1.8 mm |
| Inner Race Thickness (C) | 24 mm |
| Bearing Inside | Uses a 6306 standard bearing in the race. |
| Weight | ~0.35 kg |
Material
-
Usually made from GCr15 chrome steel, which is typical for these sprag / one-way clutch bearings.
Applications
-
Designed for use in machine systems such as conveyors, packaging, printing, paper-making, textiles, chemical equipment, etc
-
Suited for overrunning (freewheeling) or backstop applications.
