Capacitor Start General Purpose Motor 1/2 Hp Single Phase 115/208-230V AC 60 Hz 56C Frame Be A Beast For Tough Jobs, Easy Start And Reliable Power For Shop And Field Use

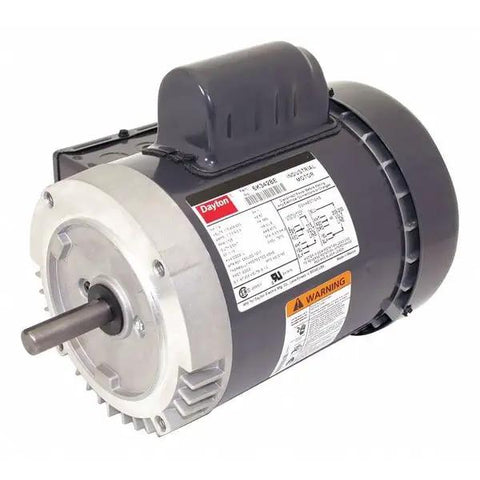

Capacitor-Start 1/2 HP Single-Phase Motor, 56C Frame (1U)
✔️ 1/2 HP capacitor-start, 115/208-230V, 60 Hz, 1725 RPM, 1U

This general purpose motor is built for dependable service in shops and field environments. It runs on single-phase power at 115/208-230V with a 60 Hz supply and uses a Totally Enclosed Fan Cooled (TEFC) enclosure to protect windings in dusty or damp locations.

✅ 1/2 HP capacitor-start, single-phase operation at 115/208-230V, 60 Hz
✅ Frame size 56C, TEFC enclosure protects windings
✅ Nameplate speed 1725 RPM; continuous duty with service factor 1.15
✅ Mounting: C-face with rigid base; shaft keyed; CW/CCW rotation
✅ Full-load current: 7.7 A at 115V / 3.9 A at 208-230V
✅ Ambient max 40°C; insulation class B; no thermal protector

💡 What is a capacitor-start general purpose motor used for in shop and field equipment? It's handy for powering compact, single-phase machines with reliable starting torque.

- Handy for powering fans, conveyors, belt drives in workshops
- Works on 115/208-230V, 60 Hz power supplies
- 1/2 HP at 1725 RPM fits compact tool setups
- TEFC enclosure protects against dust and moisture
