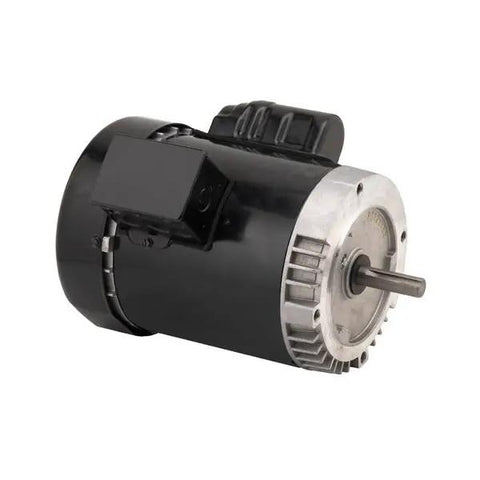

Capacitor Start General Purpose Motor 1 HP Single Phase 115/208-230V 56C Frame 1725 RPM Heavy Duty Industrial Motor Built To Last For Pumps Fans Tools And More With 1.15 Service Factor
✔️ Single unit pack, 1 HP, 115/208-230V, 1725 RPM, 60 Hz
The capacitor-start general purpose motor is a single-phase drive designed for continuous duty in pumps, fans, tools, and other light industrial equipment. With a 56C frame and TEFC enclosure, it’s built to withstand dusty or busy workshop environments and can operate at 208V (not at 200V).
✅ 1 HP rated, single-phase capacitor-start motor
✅ 1725 RPM, 60 Hz operation
✅ 115/208-230V input range
✅ 56C frame, TEFC enclosure
✅ Full Load Amps: 14.0 A at 115V / 6.9-7.0 A at 208-230V
✅ Service Factor 1.15, Continuous duty
✅ Ambient temperature rating: 40°C max
✅ Shaft rotation CW/CCW
✅ Thermal protection: None
💡 What is a capacitor-start general purpose motor used for? This type of motor is a handy choice for standard drive loads. - Handy for pumps, fans, and tools in HVAC and light industrial setups. - Delivers high starting torque for start-up under load. - Works with 115/208-230V single-phase systems and 60 Hz power.
