Capacitor Start General Purpose Electric Motor Half Horsepower 48 Frame 115 208 230 Volt AC Single Phase 1725 RPM 60 Hz Workhorse Ready With High Torque Start

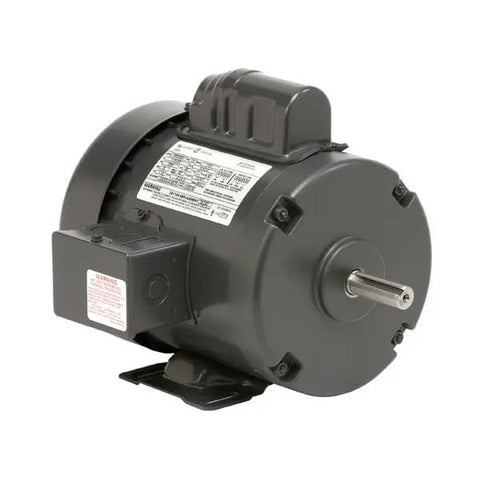

Half HP 48-Frame Capacitor-Start Motor, 115/208/230V
✔️ 1/2 HP, 48 frame, capacitor-start, 115/208-230V, 1725 RPM, Single Unit

This general-purpose single-phase motor uses a capacitor-start design to deliver reliable high starting torque for small machines. Ideal for hobbyist projects and light industrial equipment that run on 115/208-230V power.

✅ 1/2 HP
✅ Frame 48
✅ Voltage 115/208-230V AC
✅ Frequency 60 Hz
✅ Speed 1725 RPM
✅ Full Load Amps 9.0/4.3-4.5 A
✅ Duty Continuous
✅ Enclosure TEFC
✅ Insulation Class B
✅ Start Type Capacitor-Start
✅ Service Factor 1.15
✅ Max Ambient Temp 40°C
✅ Shaft Rotation CW/CCW
✅ Mounting Rigid Base
✅ Usable at 208V; Not usable at 200V

💡 What is a capacitor-start single-phase motor used for in small equipment?

This handy motor design provides reliable starting torque for small equipment. - capacitor-start design for high starting torque in compact machines - works with 115/208-230V single-phase power in workshops - 1725 RPM TEFC design supports steady performance on fans, pumps, conveyors - easy to mount on a rigid base in industrial or home shop settings
