Capacitive Proximity Sensor Shield Type LJC30A3 10 JDZ For Dielectric Objects Sensing Range 1 To 10 mm Shielded Mount 90 To 250 VAC 400 mA Normally Closed Two-Wire Output 30 mm Mount Hole Built Tough Easy Install
✔️ Normally Closed NC, shielded, 90-250 VAC, 400 mA, 30 mm mount
This shielded capacitive proximity sensor detects dielectric objects such as plastics, glass, and ceramics within a 1-10 mm range. It runs on AC power (90-250 VAC) and mounts through a 30 mm hole for easy, secure installation in control panels and automation equipment.
✅ Detection range: 1-10 mm with 10% tolerance at 10 mm

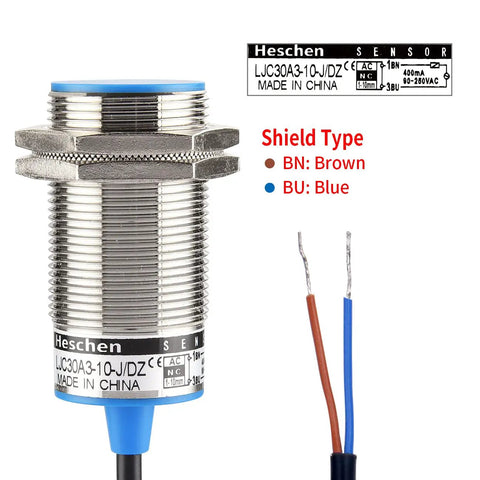

✅ Output: Normally Closed two-wire with 400 mA max
✅ Supply: 90-250 VAC 50/60 Hz; current ~1.7 mA; control output up to 400 mA
✅ Protection: IP67 shielded housing, surge absorption, load short-circuit protection

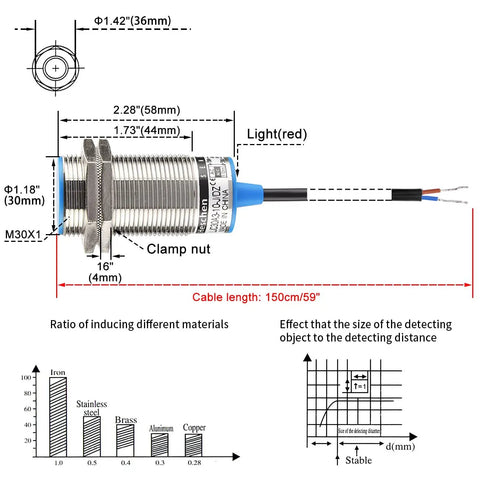

✅ Mounting: 30 mm mounting hole, rugged construction for tough environments
💡 What is a capacitive proximity sensor used for in detecting dielectric materials? This handy device helps automate sensing in manufacturing and packaging lines. - It detects dielectric objects like plastics, glass, and ceramic materials within close range. - It provides a simple NC switch output for machine control and guarding. - It performs well in panel-mounted installations with IP67 protection. - It integrates easily with AC mains automation systems for reliable performance.
