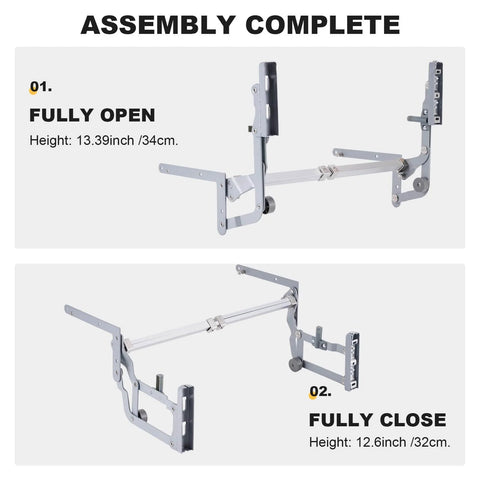

Cabinet Door Lift up Hinge, Vertical Lift Hinge, Sturdy Silent and Adjustable, Kitchen Mechanism Hinges with Pneumatic Arm

Pack of 2 cabinet lift hinges with pneumatic arm for quiet, smooth opening
✔️ Max door weight 11 lb / 5 kg; lift height 13 in / 33 cm; span 19.7-36.8 in

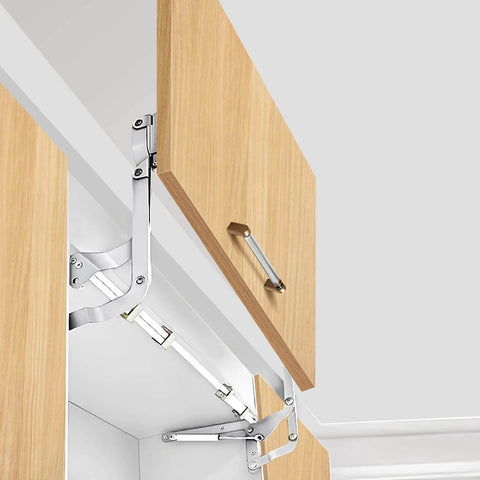

This cabinet door lift up hinge kit is designed for upper cabinets, enabling hands-free access and a clean look. It's a sturdy, handy solution for kitchens, garages, and workshops where overhead doors need to clear countertops or shelves.

✅ Weight per door: ≤11 lb / 5 kg

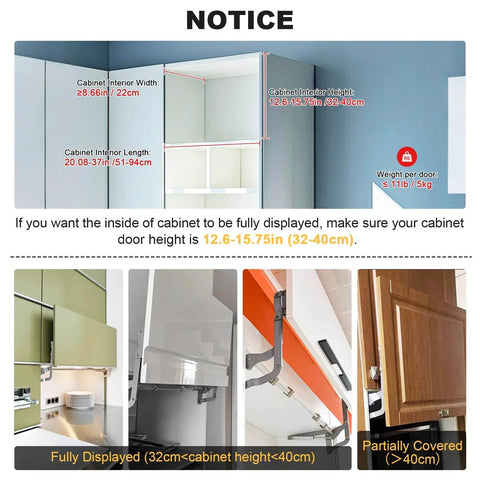

✅ Cabinet interior length: 51-94 cm / 20.08-37 in
✅ Cabinet interior width: ≥22 cm / 8.66 in

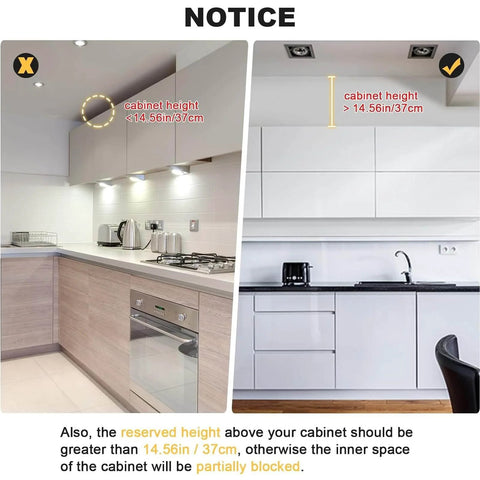

✅ Cabinet interior height: ≥32 cm / 12.6 in
✅ Lift height: 13 in / 33 cm
✅ Balance rod extension: 50-93.5 cm / 19.69-36.8 in
✅ Adjustability: feet vertical/horizontal 0.12 in; tilt 0.15 in
✅ Material: cold-rolled steel

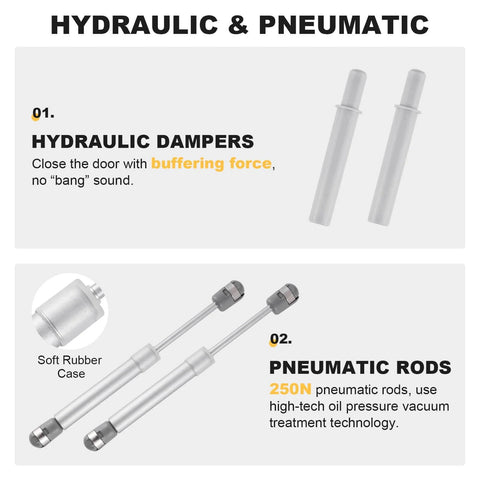

✅ Dampers: hydraulic dampers for quiet close
✅ Pneumatic rod: 250N with oil pressure vacuum treatment

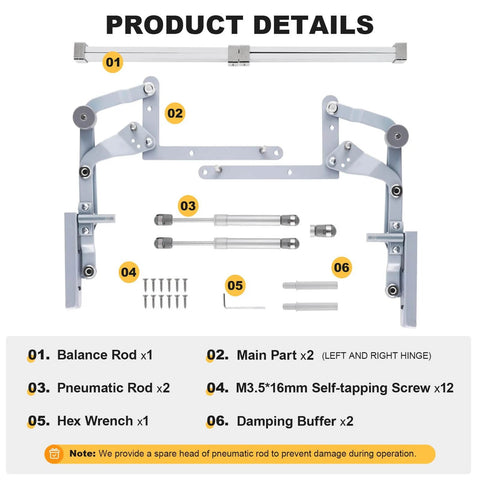

✅ Pack size: 2 hinges

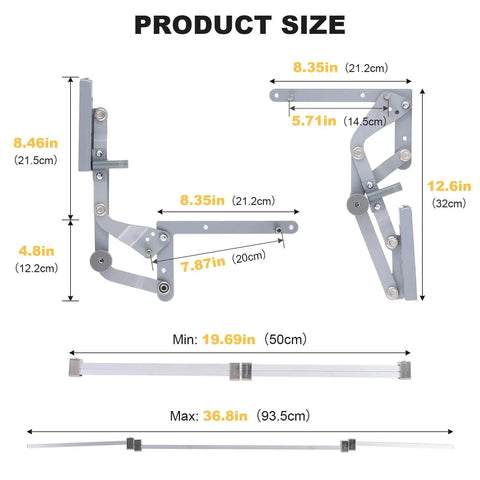

Dimension	Metric	Imperial
Door weight per door	5 kg (5 000 g)	11 lb
Lift height	33 cm (330 mm)	13 in
Cabinet interior length	51-94 cm (510-940 mm)	20.08-37 in
Cabinet interior width	22 cm (220 mm)	8.66 in
Cabinet interior height	32 cm (320 mm)	12.6 in
Balance rod extension	50-93.5 cm (500-935 mm)	19.69-36.8 in
Feet adjustment	0.12 in vertical/horizontal; 0.15 in tilt	3 mm vertical/horizontal; 4 mm tilt

💡 What is a cabinet door lift hinge used for?

This handy device is a go-to upgrade for upper cabinets, lifting doors out of the way for easy access and space-saving operation. - Handy for overhead cabinet doors that swing into counter space - Provides controlled, quiet opening with pneumatic arm - Protects cabinet edges with damped closing - Great for kitchens, workshops, and utility areas
