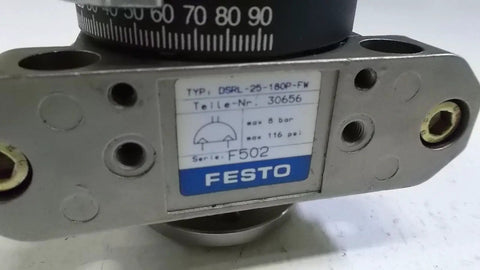

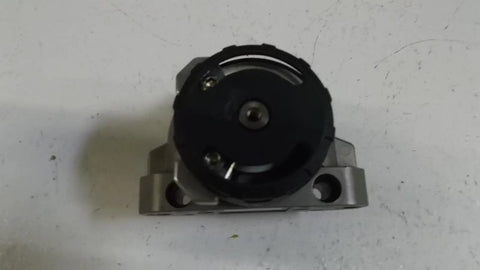

Buttery Smooth Rotary Vane Pneumatic Actuator With Double Acting Swivel Motion And Elastic Cushioning Ends Rock Solid Build Quality Designed As A No Frills Workhorse For Tight Tolerance Tasks And Effortless Shop Floor Integration

Dual vane pneumatic actuator single unit ships fast for quick setups
✔️ 180 degree swivel motion double acting operation with shock pads

This compact DSR series double acting rotary actuator delivers controlled pivot movement for repetitive manufacturing cycles. Machine shops and assembly teams install these units on conveyor diverts, packaging machinery, and automated test fixtures to handle reliable part rotation. The straightforward mounting pattern eliminates the need for complex wiring or advanced programming knowledge.

✅ 0 to 180 degree rotational travel range for flexible workflow layout
✅ Operating pressure between 1.5 and 8 bar for consistent torque delivery
✅ Built in elastic cushioning rings absorb impact noise at full stroke limits
✅ Standard M5 compressed air ports fit common quick connect fittings easily
✅ Nitrile rubber seals maintain performance in dusty shop environment conditions

💡 What kind of pneumatic system setup works best for high cycle rotary indexing applications?
Most shop floors find this handy since it kills downtime fast during heavy production runs.
- Locking in your compressor pressure around 4.5 bar delivers maximum holding torque without wasting plant air volume
- Pairing the M5 intake with a filtered regulator strips moisture before debris enters the sliding vane chamber
- Mounting the base directly onto a flat steel plate locks out vibration that normally accelerates seal degradation over time
