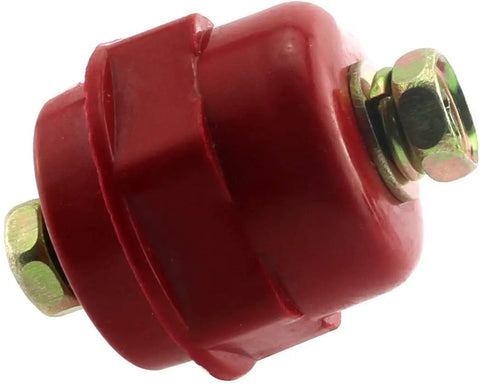

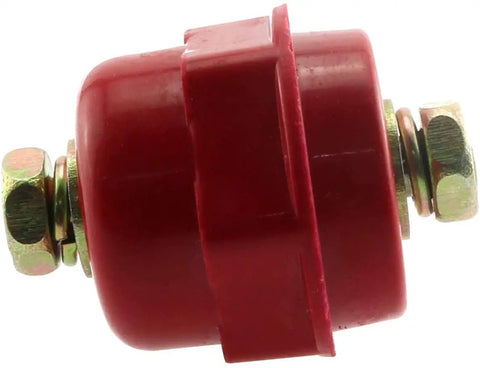

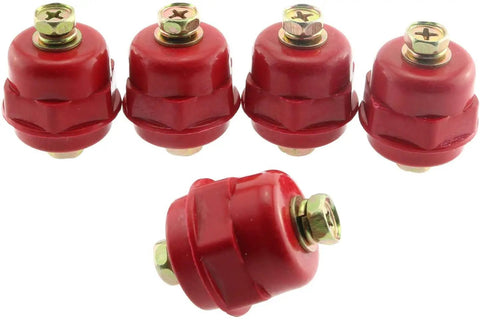

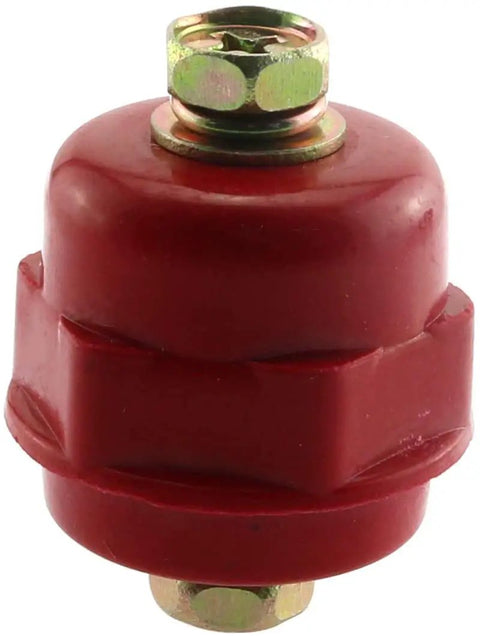

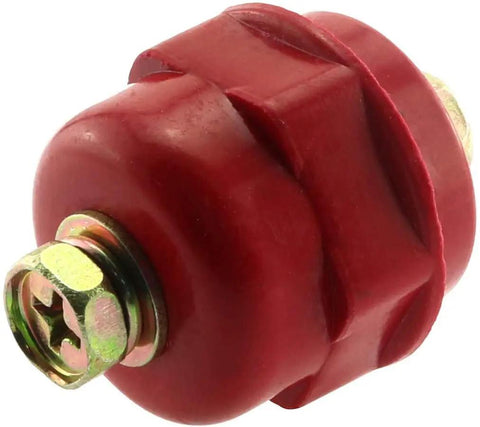

Busbar Insulator Kit 5 Piece Red Resin SM-25 M6 Polyester Standoff Insulators With Screws For Electrical Cabinets Built Tough For High Temp Fire Resistant Durable And Easy Install
✔️ 6-pack epoxy busbar insulators, M6 hardware, 600V rating
This busbar insulator kit uses epoxy resin to insulate and space busbars in electrical cabinets. It is designed for copper and aluminum busbars in distribution cabinets, helping reduce heat transfer and improve safety.
✅ Model: SM-25
✅ Material: Epoxy Resin
✅ Insulation resistance: 500 MΩ
✅ Operating voltage: 600 V
✅ Pulse voltage: 3000 V
✅ Leakage current: <1 mA at 2000 V
✅ Nut size: M6
✅ Nut material: Copper
✅ Screw hole depth: 9 mm (0.35 in)
✅ Axial tensile: 2000 N
✅ Bending: 3000 N
✅ Tightening torque: 10 N·m
✅ Working temperature: -40 to +140 °C
✅ Package: 6 PCS
💡 What is a busbar insulator used for in electrical cabinets? This handy part keeps conductors spaced and protects against shorts while standing up to heat and fire risks.
- Insulates spacing between copper or aluminum busbars
- Provides heat and fire resistance within distribution cabinets
- Works with M6 mounting hardware for secure installation
- Suitable for power distribution cabinets and panels
