Built Tough Three Phase General Purpose Motor 10 HP 256TC Frame Dual Voltage 230 And 460V AC 1180 RPM Nameplate TEFC Enclosed Fan Cooled Industrial Motor With Rigid Base Mount 60 Hz Full Load Amps 25.8 And 12.9

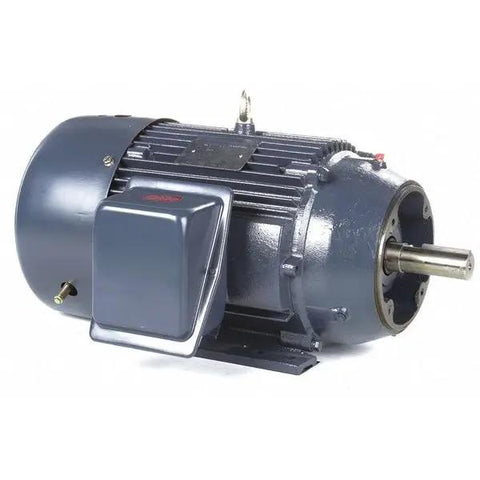

Single-Unit 10 HP TEFC Three-Phase Motor, 256TC Frame
✔️ 10 HP, 256TC frame, 230/460V, 60 Hz, 1180 RPM, SF 1.15

This is a single-unit, general-purpose three-phase motor with a TEFC enclosure designed for rugged industrial service. It operates on two voltages, 230V or 460V, at 60 Hz and uses a rigid base mounting for stable, safe installation in conveyors, pumps, fans, and other heavy equipment.

✅ 256TC frame, cast iron construction, TEFC enclosure
✅ 10 HP, 1180 RPM, 60 Hz, continuous-duty operation
✅ Dual voltage 230/460V; full-load amps 25.8/12.9 A
✅ Insulation Class F; SF 1.15; ambient 40 C
✅ Ball bearings; CW/CCW shaft rotation; rigid base mounting

💡 What is a three-phase general purpose motor used for in industry?

A handy drive option for typical plant machinery. - Three-phase power drives conveyors, pumps, fans, and processing lines - TEFC enclosure protects windings in dirty, dusty environments - 60 Hz operation with dual voltage 230/460V for flexible installation
