Built Tough Pillow Block Bearing With One And A Quarter Inch Bore, 2 Bolt Self Aligning, R3 Triple Lip Seal, Set Of 2, Designed For High Speed, Low Noise, Long Life And Extreme Climate Performance
✔️ 2-bolt self-aligning housing with R3 triple-lip seal for climates

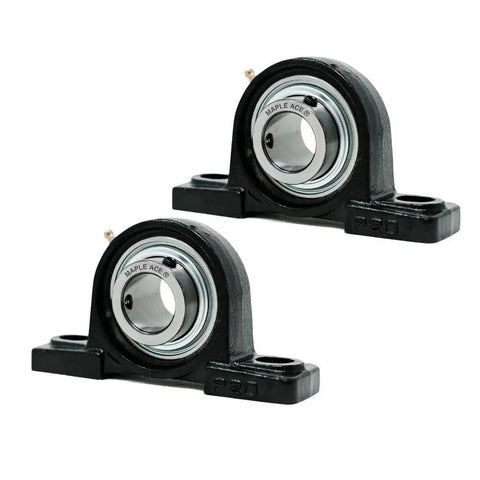

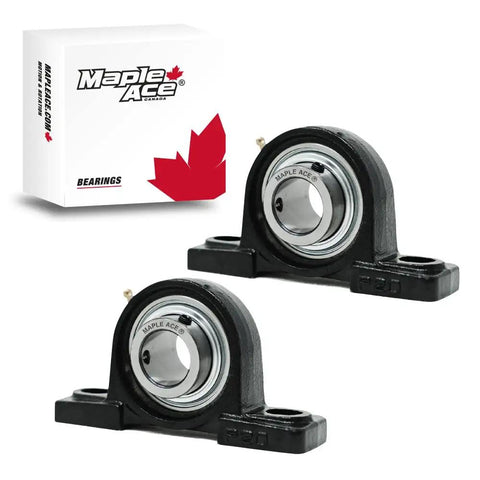

The Pillow Block Bearing set includes two UC207-20R3 insert bearings with a 1-1/4 in bore (31.75 mm) housed in robust H200 cast iron blocks. This heavy-duty unit is pre-lubricated, sealed with a triple-lip R3 seal, and designed for high-speed, low-noise, long-life operation in extreme climates. It's a common choice for replacing OEM units in conveyors, textile machinery, and industrial equipment.

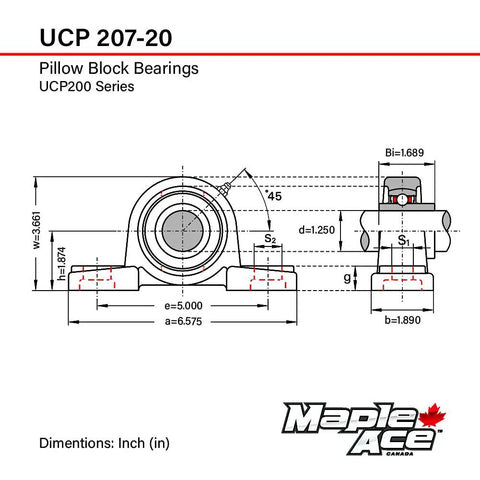

✅ Bore diameter: 31.75 mm (1-1/4 in)✅ Overall length: 167 mm (6.575 in)
✅ Overall height: 93 mm (3.661 in)
✅ Overall width: 48 mm (1.89 in)
✅ Bolt center-to-center: 127 mm (5.00 in)
✅ Mounting surface to shaft center: 47.60 mm (1.874 in)
✅ Dynamic load rating: Cr 25500 N
✅ Static load rating: Cor 15300 N
✅ Weight: 1.330 kg

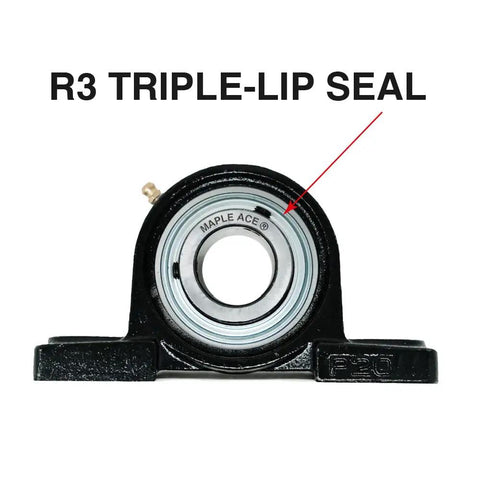

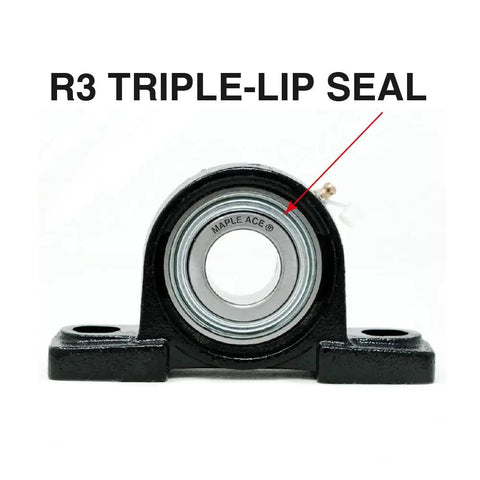

✅ Sealing type: R3 triple-lip seal
💡 What is a pillow block bearing used for in industrial settings? Pillow block bearings are handy for supporting rotating shafts in machines where space is tight and dirt is present. - handy for replacing worn pillow block bearings in conveyor lines and gear drives - seals protect from dust and moisture, extending life in extreme climates - accepts 1-1/4 in shafts with two-bolt mounting for quick upgrades
✝️
