Built Tough Heavy Duty Commercial Door Closer DC7016 Surface Mounted Grade 1 ADA UL 3 Hour Fire Rated Adjustable Size 1-6 For High Traffic Entrances And Aluminum Storefronts US10B Dark Bronze
✔️ ADA compliant, UL 3-hour fire rated, Grade 1, size 1-6
This heavy-duty hydraulic door closer is designed for high-traffic entrances, including storefronts, schools, offices, and bathrooms. It provides smooth, controlled closing and reliable performance with multiple mounting options for varied door frames and hardware. Sold as a single unit.
✅ Powder-coated cast aluminum body with a wrought steel arm and heat-treated piston for durability and corrosion resistance in medium to high traffic areas
✅ Three mounting options: regular arm, top jamb, or parallel arm; includes hardware, template, and instructions

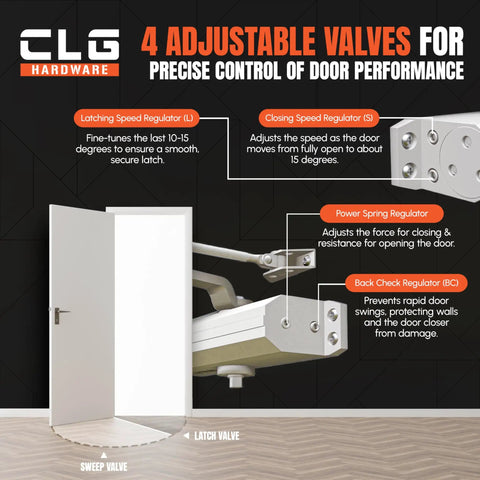

✅ Four adjustment valves control closing speed, latching speed, backcheck, and spring force for precise operation
✅ UL 3-Hour Fire Rated, ADA Compliant, ANSI/BHMA A156.4 Grade 1; tested to 2 million cycles; US-supplied support
✅ Suitable for doors up to 330 lbs (150 kg) and 60" (1500 mm) wide; weight 6.3 lbs (2.9 kg); dimensions 1 3/4" (44 mm) high, 9 5/8" (244 mm) wide, 2 3/4" (70 mm) deep; screw pattern 9 1/16" (230 mm) wide center-to-center, 3/4" (19 mm) high center-to-center
✅ Finish: US10B Dark Bronze
💡 What is a door closer used for in busy buildings?
- It helps control door speed, latching, and slam prevention
- It supports ADA accessibility and safety standards
- It works with multiple mounting options for different doors
- It provides reliable performance in high-traffic environments
