Built Tough 4 Stage Air Drying System With Auto Drain Pro Grade Coalescing And Double Particulate Filters Desiccant Dryer And Regulator For Plasma Cutters And Paint Sprayers

Heavy-Duty Four-Stage Air Drying System for Tools
✔️ Four-stage filter system with auto drain, desiccant dryer, pack: 1 unit

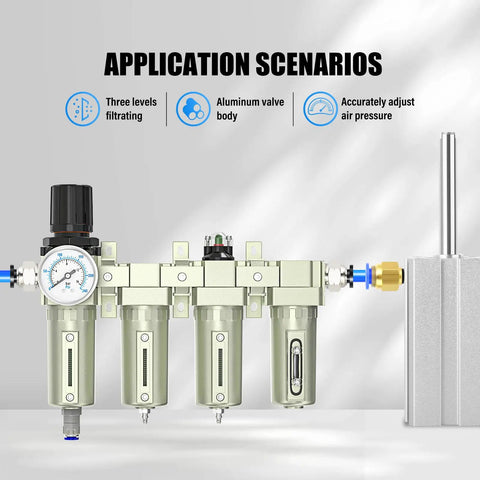

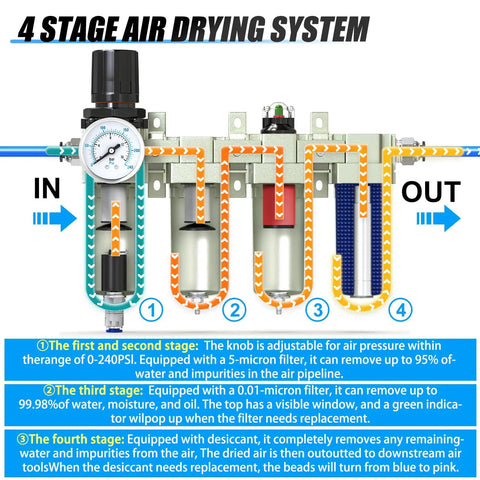

This four-stage air drying system cleans and dries compressed air for plasma cutters and paint sprayers, integrating regulator/filter stages, a high-efficiency coalescing filter, and a desiccant dryer.

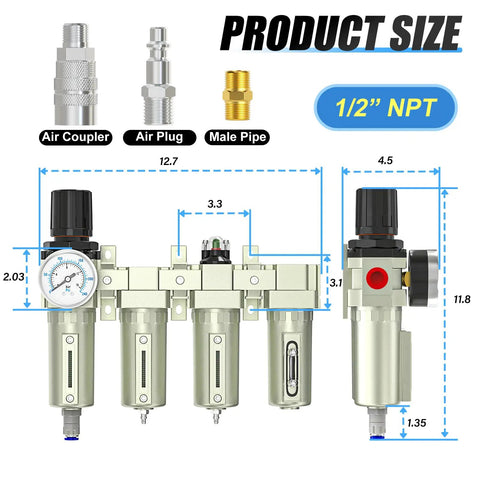

✅ Port design includes three ports: two 1/2" NPT and one 1/4" gauge port (12.7 mm and 6.35 mm).

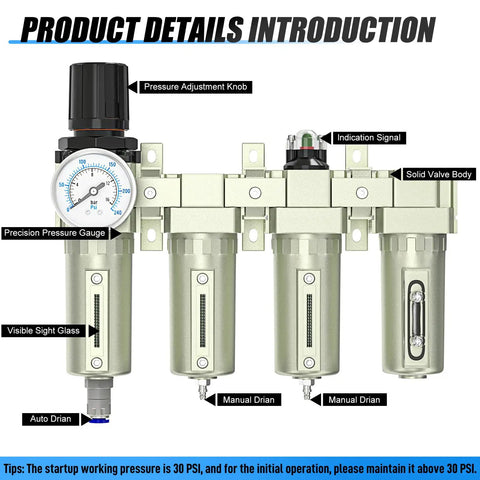

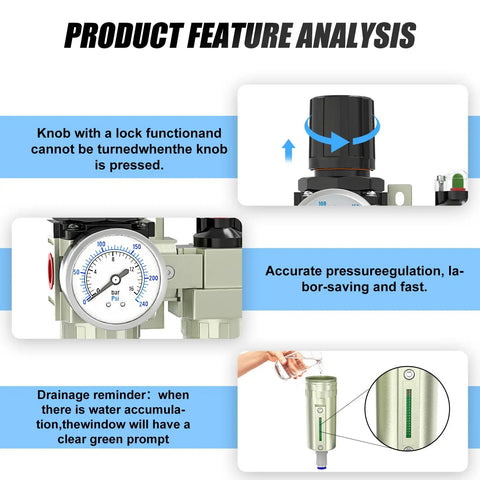

✅ Stage 1-2 Regulator/Filter with locking knob and 5 micron cartridge filters 95% of particles and water.
✅ Stage 3 Coalescing filter with 0.01 micron capability removes up to 99.98% water and impurities; green indicator window signals when to replace.

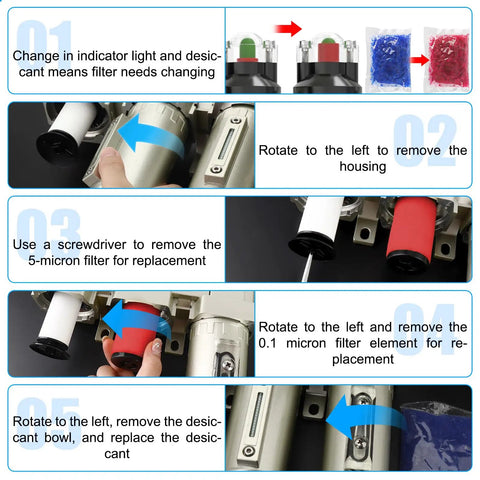

✅ Stage 4 Desiccant dryer uses blue-to-pink beads to show replacement; metal bowl for beads.

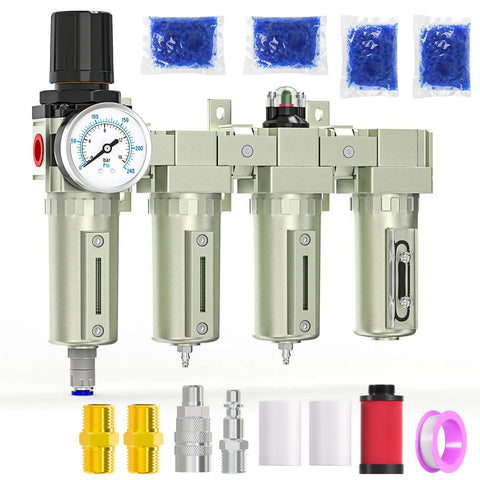

✅ Package includes four-stage air drying system, gauge, plugs, couplers, elements, desiccant beads, and Teflon tape.

This four-stage air drying system cleans and dries compressed air for plasma cutters and paint sprayers, integrating regulator/filter stages, a high-efficiency coalescing filter, and a desiccant dryer.

✅ Port design includes three ports: two 1/2" NPT and one 1/4" gauge port (12.7 mm and 6.35 mm).
✅ Stage 1-2 Regulator/Filter with locking knob and 5 micron cartridge filtering 95% of particles and water.
✅ Stage 3 Coalescing filter with 0.01 micron capability removes up to 99.98% water and impurities; visual green-change window signals when replacement is due
✅ Stage 4 Desiccant dryer with blue-to-pink indicator for replacement; metal bowl for beads
✅ Package includes four-stage air drying system, gauge, plugs, couplers, elements, desiccant beads, and Teflon tape

💡 What is a four-stage air drying system used for in industrial air supply?

It helps deliver clean, dry air to tools and spraying equipment.

• Helps prevent moisture and rust in plasma cutters and paint sprayers
• Handy for keeping coalescing and desiccant stages in good working order
• Keeps your system running with fewer moisture related issues
• Simplifies maintenance with replaceable cartridges and visual indicators
